| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 800 |
| Minimum Order Quantity: | 1550 Square Meters |
| Price: | USD 0.55-0.95 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Collect Surplus Water Drain Fields Short Filament Geotextile Liner Needle Punched White Fabric | Weight: | 800 G/㎡ |
|---|---|---|---|
| Material: | Polypropylene | Rolling Size: | Width: From 1m To 5m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage | Application: | Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | Collect Surplus Water Needle Punched Fabric,Geotextile Liner Needle Punched Fabric,Short Filament Nonwoven Geotextile Fabric |
||

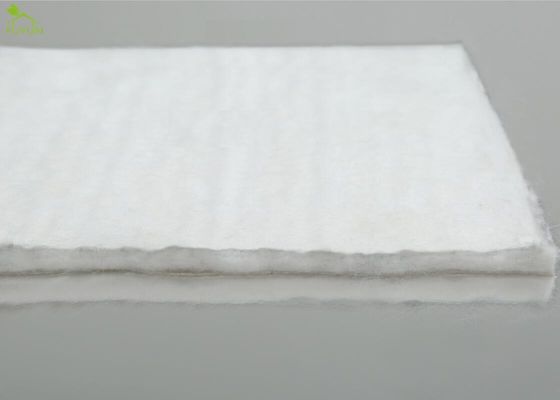

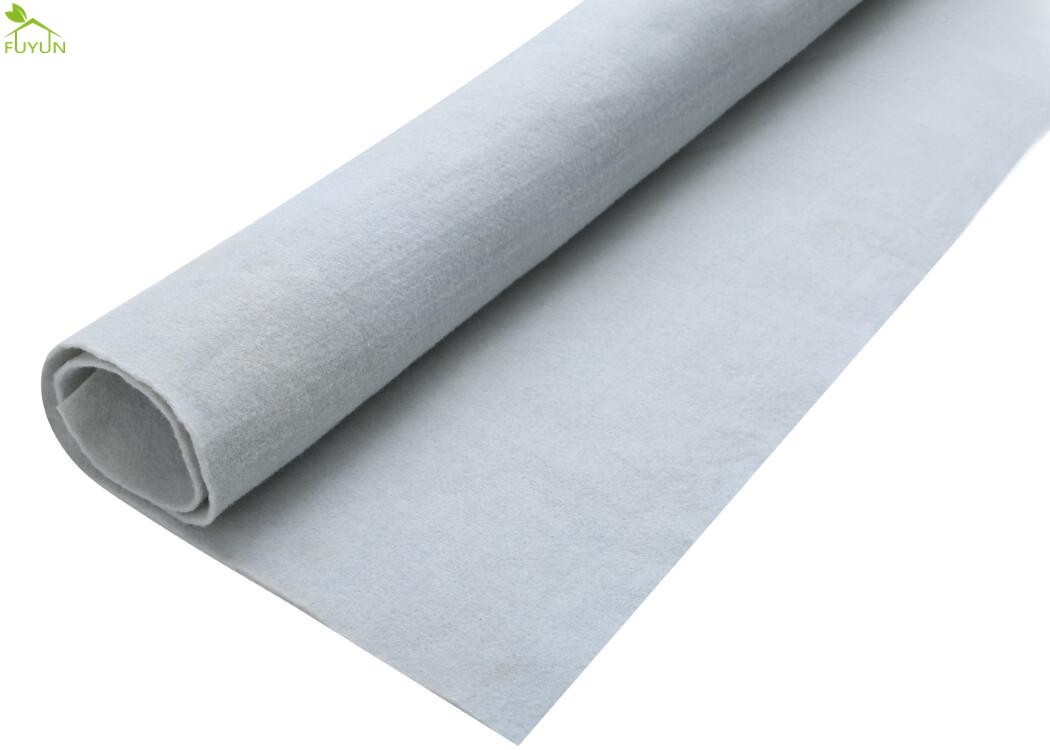

Collect Surplus Water Drain Fields Short Filament Geotextile Liner Needle Punched White Fabric
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance
thickness: 3.0mm
application: tidal reclamation project, coastal, flood dam
Product Description:
Non-woven geotextile fabric is the best choice for drainage applications where water flow through (permeability) is the main concern. Non-woven landscape fabric is commonly used in French-drains, drain-fields, and erosion control.
Needle-punched and poly-spun varieties of non-woven geotextile fabric allow water to easily flow through and are both sturdy and versatile for landscaping drainage. The non-woven geotextile fabric is most commonly used as a landscape material to support adequate drainage, filtration, and ground stabilization.
Our company offers an extensive range of woven and non-woven geotextiles with varied weights and properties to suit an array of applications. These geotextile fabrics designed with 100% polypropylene raw materials are engineered to resist ultraviolet deterioration, rotting, biological degradation, and natural occurring alkaline and acids.
When the yarn is long, it can make non woven filament fibers, when yarn is short, it can make short non woven filament fibers.
The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ and high creep resistance to make sure maintain structure stability, high flat drainage, high elongation under certain stress and vertical permeability, so can be applied in uneven and irregular foundation, especially sea coastal bases. Lots of tidal reclamation projects can use short non-woven geotextile filament fiber as materials.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Common Applications of Geotextiles
1. Drainage
Geotextiles will efficiently collect surplus water from structures, such as rainwater or surplus water, from the soil and discharge it.
2. Filtration
Our geotextiles provide superior hydraulic flow and soil retention, which makes them well suited for filtration in subsurface drainage applications and under hard armour systems.
3. Separation
Geotextiles are used for paved and unpaved roads, where ground conditions have been compromised. As a separation layer, geotextiles can aid preventing the intermixing of dissimilar materials, add to the performance life of the road and reduce the overall thickness of the road section by requiring less aggregate during construction.
4. Reinforcement
High strength geotextiles can be used to reinforce earth structures as the strength of the tape or filament within the fabric may be increased to suit a specific application. Thanks to their high tensile strength they are an ideal reinforcement solution.
5. Protection
Due to the consistent thickness and weight of our Geotextiles, they provide adequate cushioning and protection for critical lining systems.
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
