| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, CE,BV, EN |
| Model Number: | 100KN |
| Minimum Order Quantity: | 1000 Square Meters |
| Price: | USD 0.40-0.70 Square Meter |
| Packaging Details: | Woven Bags, 50-100m/roll, Width 1-6m |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000 Square Meters per Day |
| Material: | Fiberglass | Color: | Black |
|---|---|---|---|
| Length: | 50-100m/roll | Width: | 1-6m |
| Temperature Resistance: | From -100 To 280 ℃ | Package: | Pp Bag |
| Tensile Strength: | 30-150KN/m | Feature: | Temperature Resistance, Anti-static, Light Weight, Long Life |
| Certification: | SGS,EN,CE | Product Name: | Fiberglass Geogrid Asphalt Stabilization Corrosion Anti-aging Resistance 25.4*25.4 |
| High Light: | Anti Aging Fiberglass Geogrid,Fiberglass Geogrid Corrosion Resistance,Asphalt Stabilization Fiberglass Geogrid |
||

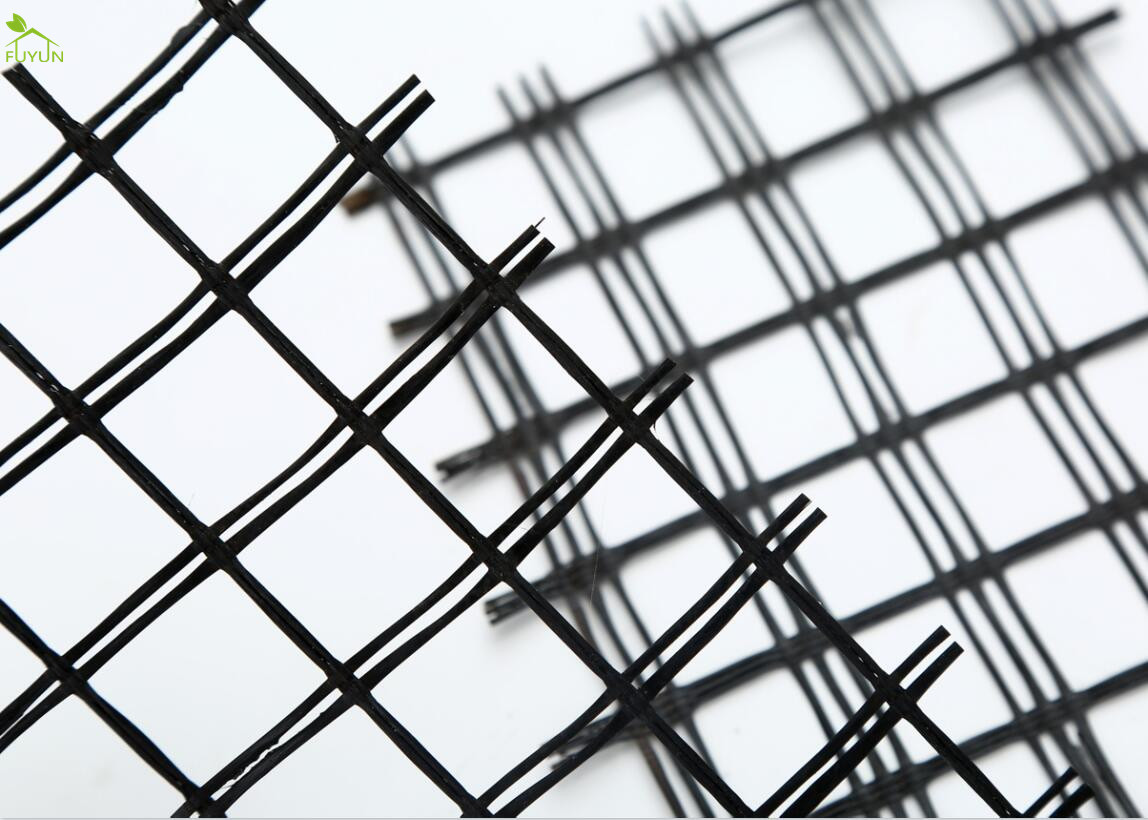

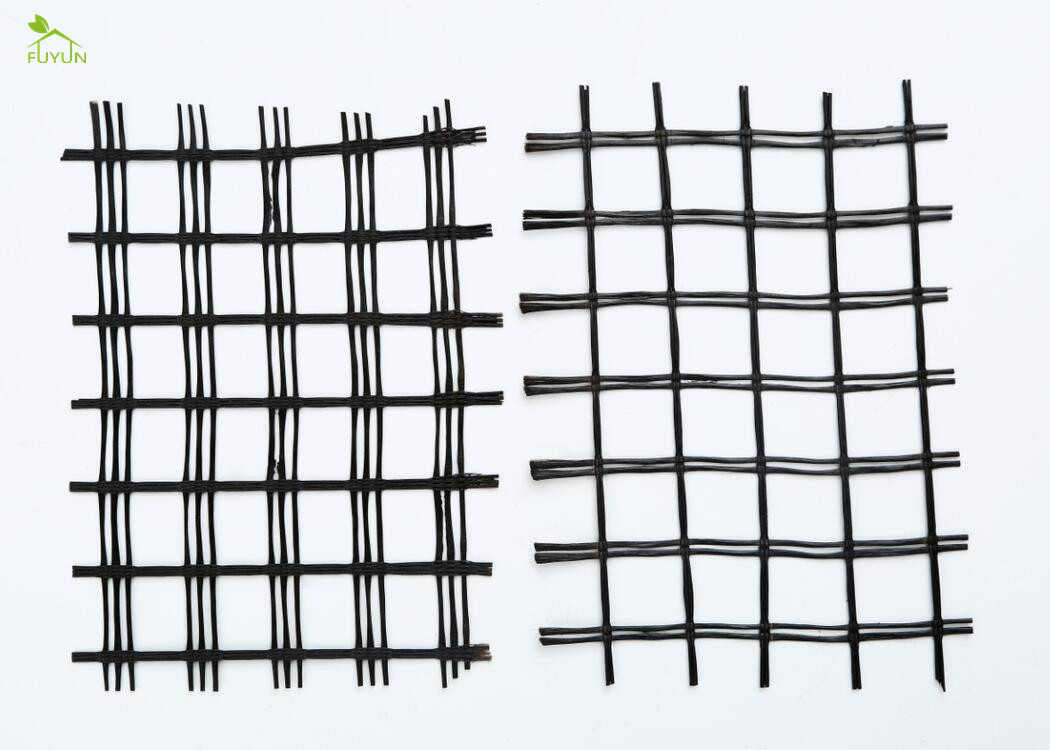

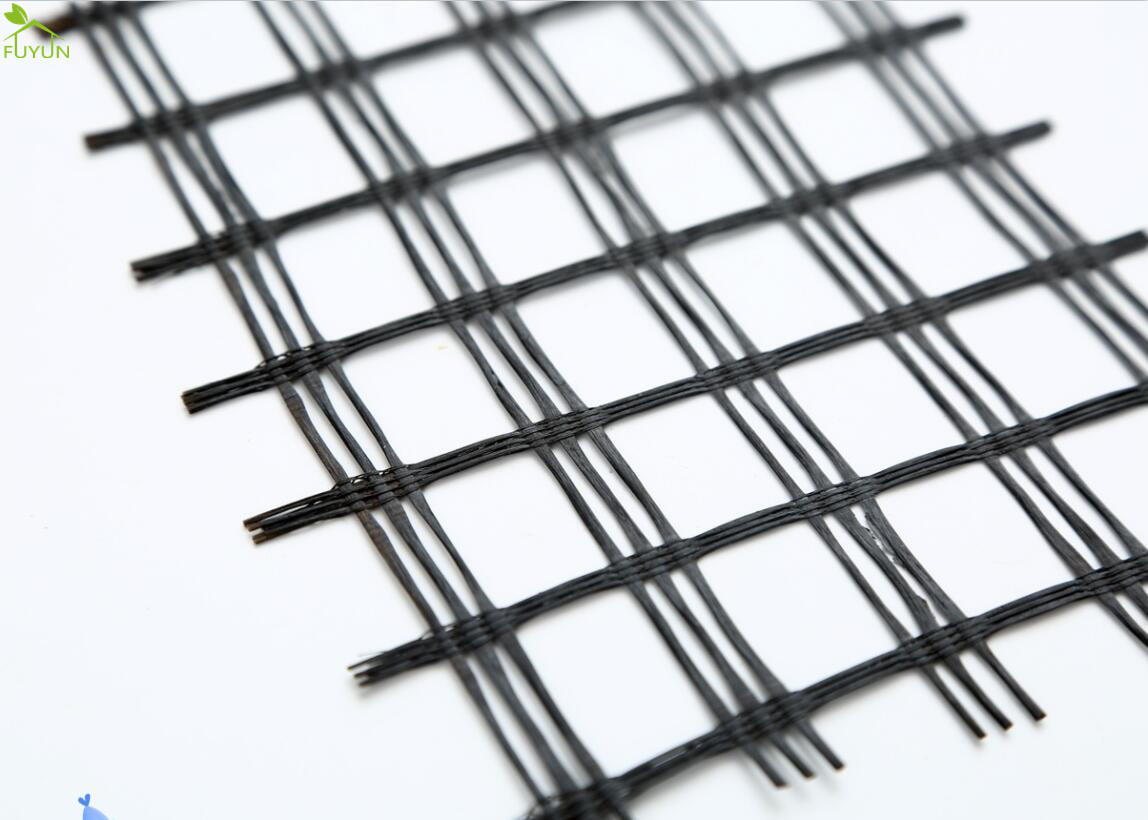

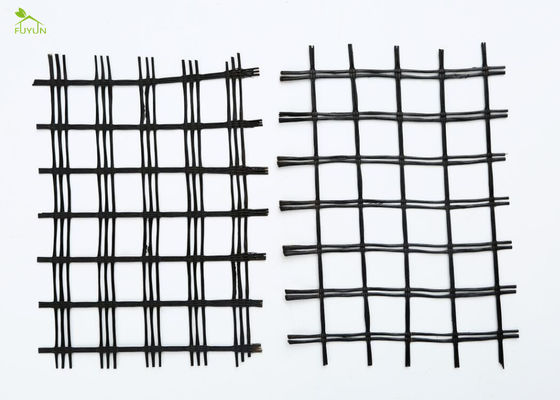

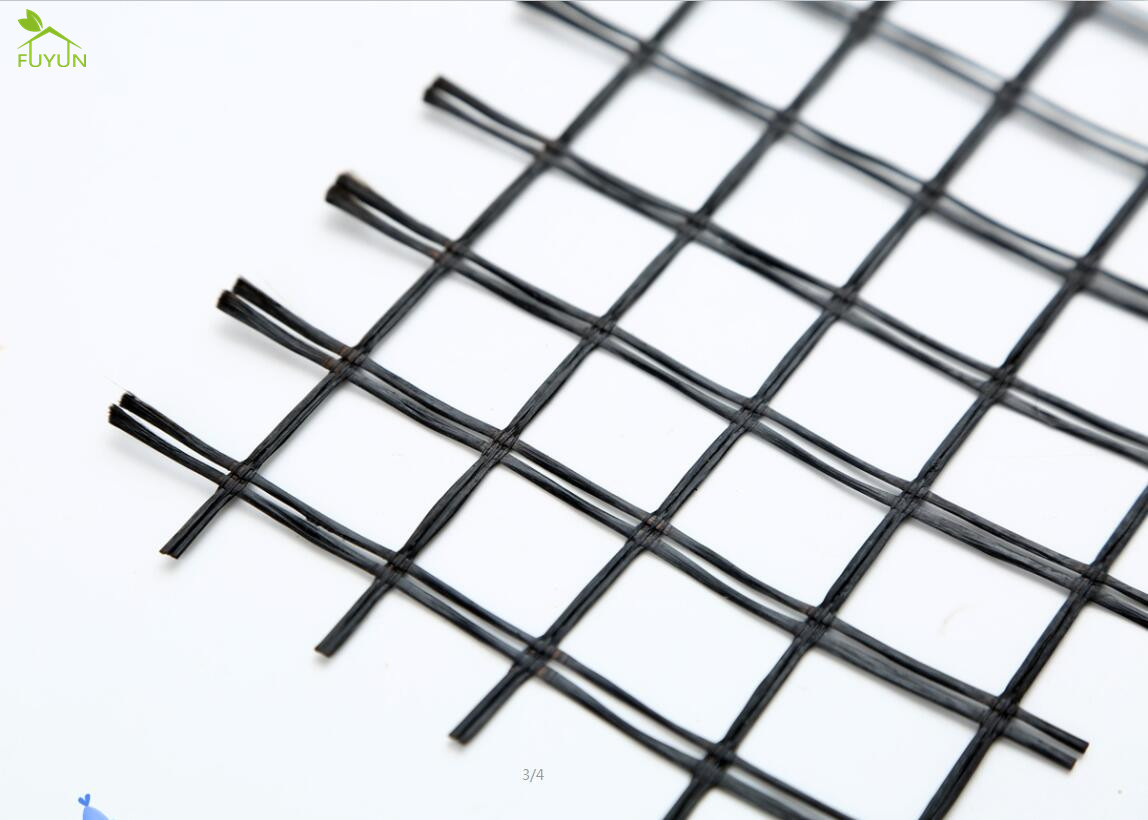

Fiberglass Geogrid Asphalt Stabilization Corrosion Anti-aging Resistance 25.4*25.4
Quick Detail:
material: glass fiber
function: reinforce, strengthen road, prevent road cracks
advantage: high temperature resistance, low cold resistance, anti-aging and corrosion resistance
Product Description:
Fiberglass geogrid select high-quality reinforced alkali-free glass fiber yarn, use foreign advanced warp knitting machine to woven into the base material, adopt warp-knitting orientation structure, make full use of the yarn strength in the fabric, improve its mechanical properties, and make it have good tensile strength and resistance.Based on the principle of similar compatibility, it focuses on its composite performance with asphalt mixtures, and fully protects the glass fiber substrate, which greatly improves the wear resistance and shear resistance of the substrate, so that it can be used for pavement reinforcement and resistance. The occurrence of road diseases such as cracks and ruts has ended the difficult problem of asphalt pavement reinforcement.
It has high tensile strength and low elongation on both sides of the warp and weft, and has excellent properties such as high temperature resistance, low cold resistance, anti-aging and corrosion resistance.It is widely used in the reinforcement of asphalt pavement, cement pavement and subgrade, railway subgrade, dam slope protection, airport runway, sand control and other projects. It uses glass fiber non alkali and non twist roving as the main raw material and adopts certain weaving process to make the mesh mechanism material, which can protect the glass fiber and improve the overall performance.
Technical Parameter:
| features specs | GSB-30-30 | GSB-40-40 | GSB-50-50 | GSB-80-80 | GSB-100-100 | GSB-125-125 | GSB-150-150 | ||
| Grid Mesh Size | 12.7*12.7-25.4*25.4 | ||||||||
| Tensile Strength (≧ KN/m) | Vertical | 30 | 40 | 50 | 80 | 100 | 125 | 150 | |
| Horizontal | 30 | 40 | 50 | 80 | 100 | 125 | 150 | ||
| Elongation (%) | ≦4 | ≦4 | ≦4 | ≦4 | ≦4 | ≦4 | ≦4 | ||
| Temperature Resistance ℃ | -100~280 | -100~280 | -100~280 | -100~280 | -100~280 | -100~280 | -100~280 | ||
Application:
Reconstruction of cement concrete pavement into composite pavement
Restrain reflection cracks caused by plate contraction
Road renovation project
Prevention and treatment of cracks caused by new and old joint and uneven settlement
The reinforcement treatment of soft soil foundation is conducive to the consolidation of soft soil, effectively restrain the settlement, uniform stress distribution and enhance the overall strength of subgrade
The shrinkage cracks are produced in the semi-rigid base of the new road, and the reinforcement is used to prevent the pavement cracks caused by the reflection of the foundation cracks
Advantage:
It can be widely used in old cement pavement, airport runway maintenance, embankment, river bank, slope protection, road and bridge pavement enhancement and other engineering fields.
It can strengthen and reinforce the pavement, prevent rutting fatigue crack, hot and cold expansion crack and reflection crack under the pavement, disperse the bearing stress of the pavement and prolong the service life of the pavement.
High tensile strength and low elongation, no long-term creep, good physical and chemical stability, anti fatigue cracking, high temperature rut resistance, low temperature shrinkage crack resistance, delay and reduce reflection crack.
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Delivery:
It can be shipped in 7 days. Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons.
Factory Show:
Supply Ability:
25 tons per day
