| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 800 |
| Minimum Order Quantity: | 1550 Square Meters |
| Price: | USD 0.35-0.95 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Breathable White Polypropylene Short Filament Nonwoven Protect Water Source 800gsm Geotextile Liner | Weight: | 800 G/㎡ |
|---|---|---|---|
| Material: | Polyester, Polypropylene PET, PP | Rolling Size: | Width: From 1m To 5m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage | Application: | Water Source Project, Coastal, Flood Dam |
| High Light: | Rip Rap Erosion Control Geotextile Liner,Short Filament Geotextile Fabric,Geotextile Liner Breathable |
||

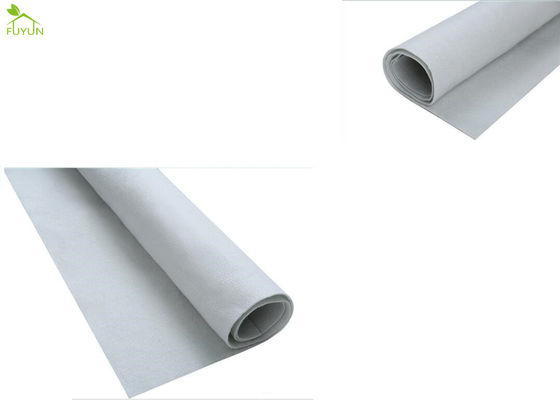

Rip Rap Erosion Control White Polypropylene Short Filament Geotextile Liner Breathable 800gsm
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance
thickness: 3.0mm
application: tidal reclamation project, coastal, flood dam
Product Description:
Our company offers an extensive range of woven and non-woven geotextiles with varied weights and properties to suit an array of applications. These geotextile fabrics designed with 100% polypropylene raw materials are engineered to resist ultraviolet deterioration, rotting, biological degradation, and natural occurring alkaline and acids.
When the yarn is long, it can make non woven filament fibers, when yarn is short, it can make short non woven filament fibers.
The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ and high creep resistance to make sure maintain structure stability, high flat drainage, high elongation under certain stress and vertical permeability, so can be applied in uneven and irregular foundation, especially sea coastal bases. Lots of tidal reclamation projects can use short non-woven geotextile filament fiber as materials.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
