Mining Washing Pool Waterproof Geomembrane Fabric 5.5m Width ASTM GM13

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, ASTM, GB, BV, SASO, GM13, SONCAP
Model Number: 1.0MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.45-0.75 square meters
Packaging Details: packed in woven bags
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 20 Tons per Day
Detail Information
Thickness: 1.0mm Width: 5.5m
Length: 200m/roll Application: Mining Washing Pool, Heap Yard, Dissolving Tank,copper Coal Mining Project, Tailing Pond
Material: EVA, PVC, HDPE, LLDPE, Polyethylene, LDPE, EDPM Function: Waterproof, Protect Environment, Anti Seepage
Weight: 200gsm Product Name: Tailing Pond 1.0mm Thickness 5.5m Width Waterproof HDPE Geomembrane Fabric Linings ASTM GM13
High Light:

Washing Pool Geomembrane Fabric


HDPE Geomembrane Fabric


Waterproof Geomembrane Fabric

Product Description

Tailing Pond Mining Washing Pool 1.0mm Thickness 5.5m Width Waterproof HDPE Geomembrane Fabric Linings ASTM GM13


Quick Detail:

  • material: HDPE, LDPE, LLDPE, EDPM
  • length: 200m/roll
  • width: 5.5m
  • thickness:  1.0mm
  • application: coal mine, mining washing pool, heap yard, dissolving tankcopper mining, fishing pond & other agriculture, chemical industry, tailing pond


Production Description:


Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.


Geomembranes used in the mining industry:

  • bottom liners
  • ditch and canal liners
  • pond liners

Heap leaching has become the preferred method of recovering minerals from low-grade ore from open pit mines. Copper, gold, silver and other metals are most common. The metal deposits are dissolved by chemicals applied to the top of the heap of ore, which eventually leach to the bottom of the pile. Here a geomembrane liner captures the solution preventing it from migrating into the ground, before directing the solution by gravity to a collection system. The solution is sent to a refinery where the metal can be precipitated out and the solution sent back to the heap to be used again to dissolve more metal.


PVC liners are used in evaporation ponds in salt mining operations. Water is pumped through wells into and out of the underground salt formations bringing the brine solution to the surface, where the sun evaporates the water, leaving the salt for recovery.


Coal ash basin closures are another ideal application for geomembrane liners.





general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard


specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%




  • Landscape Projects: Artificial lake, pond, the bottom of pond in Golf course, revetment etc;
  • Sanitation Projects: Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment, dangerous cargo storage;
  • Water Conservancy Projects: Anti-seepage, leaking stoppage and reinforce of river/lake/basin/dam, anti-seepage of water channel, vertical core wall, lake etc;

  • Mining Industry & Chemical Industry: Anti-seepage of oil tank in chemical plant, mining washing pool, heap yard, dissolving tankrefinery plant, petrol station, chemical reaction camera, inner liner of settling tank, secondary liner etc;
  • Construction Projects: Underground project of subway and building, roof reservoir, roof garden, sewage pipeline etc;
  • Aquaculture: Inner liner or fish pond, shrimp pond, revetment of sea cucumber pool etc;

  • Agriculture: Reservoir,drinking water pool, pool, irrigation system;

  • Salt Industry: Salt filed crystallizing pond, brine pond, salt film etc.

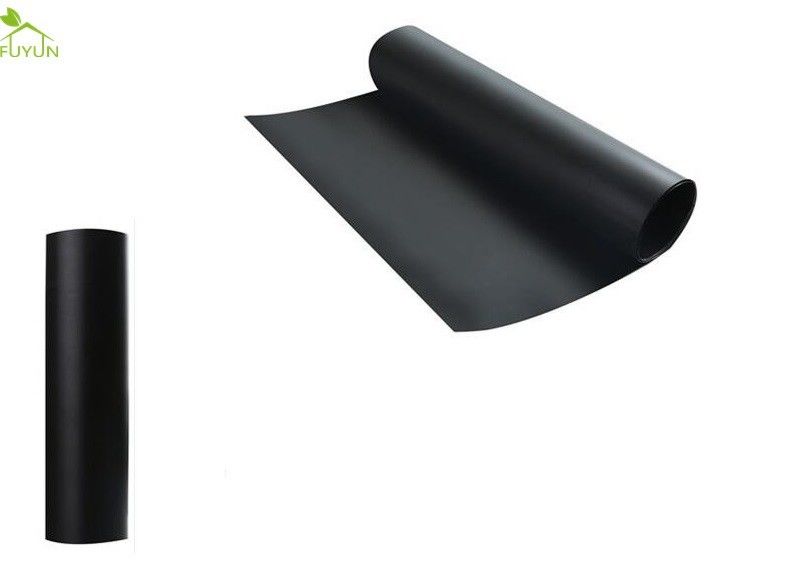

Mining Washing Pool Waterproof Geomembrane Fabric 5.5m Width ASTM GM13 0

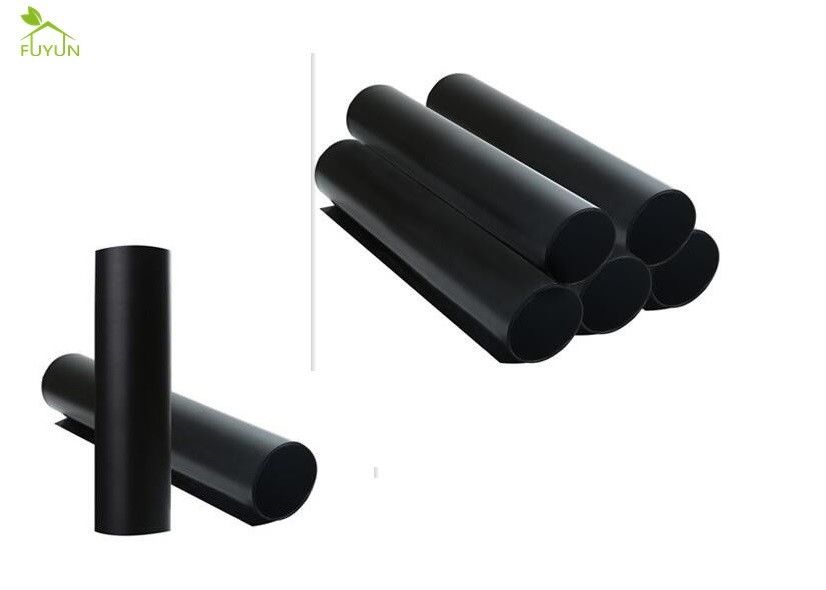

Mining Washing Pool Waterproof Geomembrane Fabric 5.5m Width ASTM GM13 1

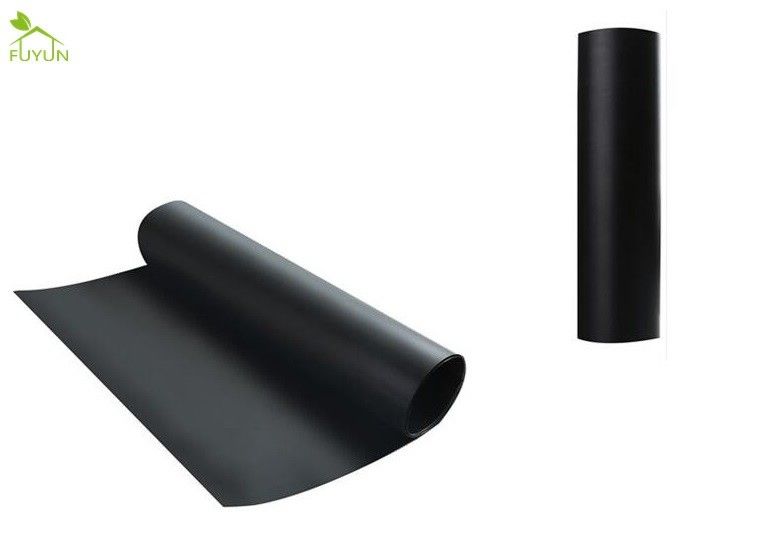

Mining Washing Pool Waterproof Geomembrane Fabric 5.5m Width ASTM GM13 2





HDPE GEOMEMBRANE is called "High Density Polyethylene Geomembrane"

1. excellent resistance to environmental stress cracking
2. low temperature resistance, aging resistance
3. corrosion resistance, and a large temperature range (-60-+ 60)
4. longer 50 years of service life, widely used in anti-seepage projects for domestic waste landfills, anti-seepage for solid waste landfills, anti-seepage for sewage treatment plants, anti-seepage for artificial lakes, tailings treatment, etc.





Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2

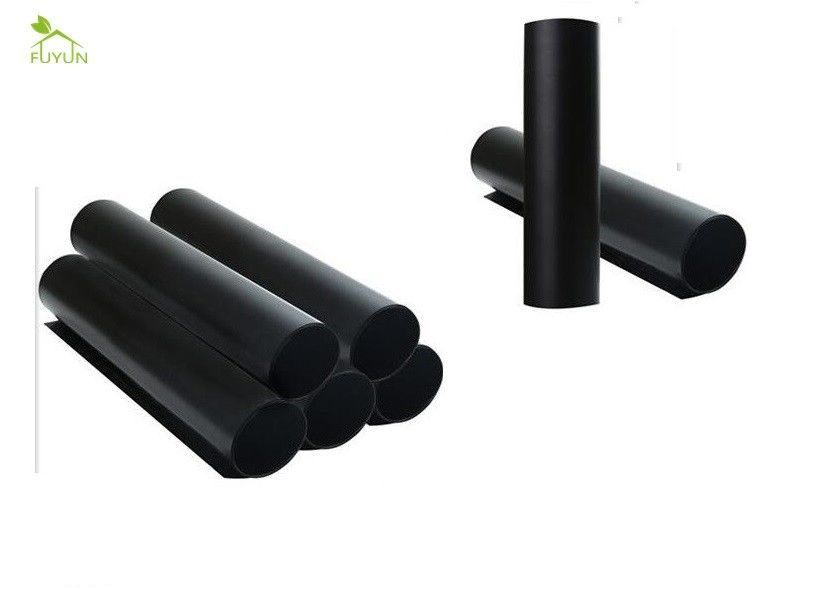

Mining Washing Pool Waterproof Geomembrane Fabric 5.5m Width ASTM GM13 3



Factory Show:

Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.


Mining Washing Pool Waterproof Geomembrane Fabric 5.5m Width ASTM GM13 4
