| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV,CE, SGS |
| Model Number: | 100 |
| Minimum Order Quantity: | 1500 Square Meters |
| Price: | USD 0.25-0.55 Square Meter |
| Packaging Details: | Well Packed In Woven Bag, Width from 1m to 5.5m,Length from 50m to 250m |
| Delivery Time: | 5 Days |
| Payment Terms: | Paypal, L/C, D/A, Western Union, D/P, T/T, MoneyGram |
| Supply Ability: | 25.5 Tons per Day |
| Product Name: | Water Conservancy Water-Filtration Reinforce PP PET Short Fiber Filament Nonwoven 1000gsm White Geotextile | Weight: | 1000 G/㎡ |
|---|---|---|---|
| Application: | Water Conservancy, Coastal Beach, Road, Sewage Plant, Railway, Dam | Material: | Polyester, Polypropylene, Pp |
| Rolling Size: | Width: From 1m To 5.5m, Length: From 50m To 250m | Function: | Filtration, Reinforcement, Drainage |
| High Light: | 1000gsm Nonwoven Geotextile Fabric,White Non Woven Geotextile Membrane,Short Filament Non Woven Geotextile Membrane |
||

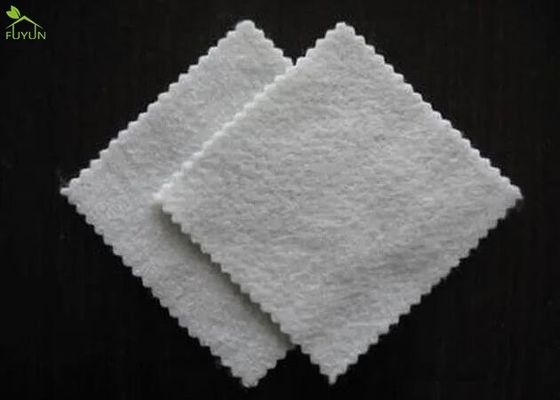

Water Conservancy Water-Filtration Reinforce PP PET Short Fiber Filament Nonwoven 1000gsm White Geotextile
Quick Detail:
function: filtrate, isolate and reinforce
type: 100
thickness: 2.0mm
elongation at Break (%): 25-100
application: flood dike, water conservancy, sewage plant, road, railway, dam, coastal beach,
Product Description:
Our company geotextile is a new engineering construction material for civil engineering stipulated in our country.
1. It is made of filament or short filament fibers being laid into nets by advanced machines and special procedures.
2. It is interweaved with different fibers by needling punch and other processes.
So that the fabric can be standardized product. This makes the fabric plump, soft, stiff and thick to meet the requirements of different thickness. Geotextile can be divided into filament non-woven geotextile and short non-woven geotextile according to the length of yarn.
Filament's tensile strength is much higher than that of short filament. Because the fiber is soft and has a certain tear resistance, at the same time, it has a good function of filtration, water filtration and reinforcement. Specifications range from 100 g/㎡ to 800 g/㎡. The main material is polyester fiber and polypropylene fiber, which has superior durability, water permeability, filtration, plane drainage capacity, deformation adaptability.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm ,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
It is mainly used for reinforcement, filtration, isolation and drainage of flood dike, water conservancy, dyke, highway, railway, coastal beach and other engineering projects, especially for saline alkali swamp, landfill and sewage plant project.
Advantage:
It has good georeinforcement performance, friction coefficient and tensile strength.
It has strong anti burying and anti-corrosion performance, fluffy structure and good drainage performance.
It has good mechanical properties, water permeability, corrosion resistance and aging resistance.
It has the functions of isolation, filtration, drainage, protection, stabilization and strengthening.
It can be applied to the uneven base, resistance of the damage of external force, and has small creep.
Package:
packed as rolls with tight belt and woven bags. I t can gurantee onvenient unloading and protecting product.
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
Delivery product will be loaded as requirement to make sure it can be well protected. 20GP Container can load around 19.5 tons, 40HQ 25.5 tons. It casn be shipped in 5 days.
Factory Show:
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
