| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, ASTM, BV, SASO, SONCAP |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 1800 square meters |
| Price: | USD 0.45-1.25 square meters |
| Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20 Tons per Day |
| Thickness: | 1.0mm | Width: | 6m |
|---|---|---|---|
| Length: | 50m-105m/roll | Application: | Landfills, Sewage Plant |
| Material: | EVA, PVC, HDPE, LLDPE, Polyethylene | Function: | Antiseepage, Antileakage, Impermeable, Waterproof |
| Weight: | 130gsm | Product Name: | ASTM Certified Environmental Protection Geomembrane Fabric 1.0mm For Sewage Plant Solid Waste Containment |
| High Light: | Environment Protection Geomembrane Fabric,ASTM Certified Geomembrane Fabric,Sewage Plant Geotextile Cloth |
||

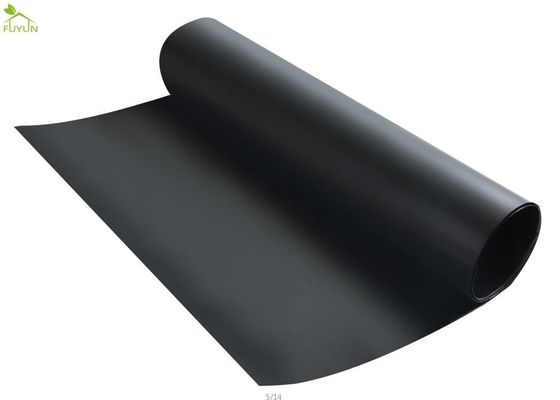

ASTM Certified Environmental Protection Geomembrane Fabric 1.0mm For Sewage Plant Solid Waste Containment
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
Composite geomembrane is a kind of anti-seepage geosynthetic material taking non-woven geotextile as base material, and HDPE geomembrane as the membrane material. Its waterproof feature mainly depends on the characteristic of geomembrane. Plastic membrane used in anti-seepage projects at home and abroad mainly include PVC,PE and EVA, and ECB applied in tunnel, which are all polymer chemistry flexible material with small rate, strong extension, high deformity, corrosion resistance, low temperature resistance and good ability of antifreezing. Its main mechanism is separating leakage channel of earth dam with the waterproof feature of plastic membrane, bearing water pressure and adapting deformation of dam with large tensile strength and elongation; While non-woven geotextile is a polymer short-fiber chemical material, and it is formed through needle-puncturing or thermal pasting. and it has higher tensile strength and elongation.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Application:
1.Environmental protection, environmental hygiene (such as garbage landfill site, treatment of sewage, containment of poisonous or harmful wastes, hazardous warehouse, industry wastes, construction & explosive rubbish, etc)
2. Water conservancy (such as waterproofing, stopping up leak, reinforcement for lake, river, channels, tunnels, dams and reservoirs; vertical wall with core, slope protection, etc)
3. Municipal engineering (expressway, subway, underground engineering of building; and liner of roof pool, roof garden's waterproofing, sewage channel, etc)
4. Garden (backing & slope protection of artificial lake, pool, golf course's pond)
5. Petrochemicals (liner secondary lining of chemical reeaction tank and deposit tank from chemical plant & refinery; seepage control of oil tank from gas station)
6. Mining (backing seepage of washing pond, heap leaching pond, ashery, dissolved pond, deposit pond from the stack and tailing)
7. Traffic facilities (highway foundation reinforcement, culvert stopping up leak)
8. Agriculture (stolling up leak for reservoirs, drinking pools, storage ponds and irrigation system)
9. Aquaculture industry (seepage control for sea cucumber circle's slope protection, liner of fish pool & shrimp pond)
10. Seepage, corrosion, leaks control & reinforcement for other facility, leachate collection
11. Temporary container structure, prefabrication of special parts
Advantage:
1. Lower permeability
2. High tear and puncture resistance (depending on the type of terrain)
3. High chemical resistance
4. Long Duration of project
5. Good UV exposure
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
Factory Show:
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
