Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, ASTM, GB, BV, SASO, SONCAP
Model Number: 1.5MM
Minimum Order Quantity: 1500 square meters
Price: USD 0.45-0.65 square meters
Packaging Details: packed in woven bags
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 20 Tons per Day
Detail Information
Thickness: 1.5mm Width: 7m
Length: 105m/roll Application: Copper Coal Mining Project
Material: EVA, PVC, HDPE, LLDPE, Polyethylene Function: Waterproof
Weight: 250gsm Product Name: Copper Coal Mining 1.5mm Thickness 7m Width 105m/roll Waterproof HDPE Geomembrane Fabric ASTM ISO
High Light:

7m Width Geomembrane Fabric

,

Waterproof Geomembrane Fabric

,

Copper Coal Mining Geomembrane Fabric


Product Description

Copper Coal Mining 1.5mm Thickness 7m Width 105m/roll Waterproof HDPE Geomembrane Fabric ASTM ISO





Quick Detail:

  • material: HDPE, LDPE
  • length: 105m
  • width: 7m
  • thickness:  1.5mm
  • application: coal mine, copper mining, fishing pond & other agriculture, chemical industry



Production Description:



Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.



HDPE geomembrane adopts the technologies of three-layer co-extrusion blow molding and double-layer co-extrusion rolling. The raw material is high-quality polyethylene resin produced by large petrochemical enterprises at home and abroad. The features of product are good mechanical performance, high tensile resistance, good flexibility, puncture resistance, ageing resistance, UV resistance, oil resistance, salt resistance, acid resistance, alkali resistance, high&low temperature resistance, non-toxic anticorrosion, long service life and so on. It also has a good effect on waterproofing, anti-seepage and damp-proofing.





Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:

  • Landscape Projects: Artificial lake, pond, the bottom of pond in Golf course, revetment etc;
  • Sanitation Projects: Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment, dangerous cargo storage;
  • Water Conservancy Projects: Anti-seepage, leaking stoppage and reinforce of river/lake/basin/dam, anti-seepage of water channel, vertical core wall, lake etc;

  • Mining Industry & Chemical Industry: Anti-seepage of oil tank in chemical plant, refinery plant, petrol station, chemical reaction camera, inner liner of settling tank, secondary liner etc;
  • Construction Projects: Underground project of subway and building, roof reservoir, roof garden, sewage pipeline etc;
  • Aquaculture: Inner liner or fish pond, shrimp pond, revetment of sea cucumber pool etc;

  • Agriculture: Reservoir,drinking water pool, pool, irrigation system;

  • Salt Industry: Salt filed crystallizing pond, brine pond, salt film etc.

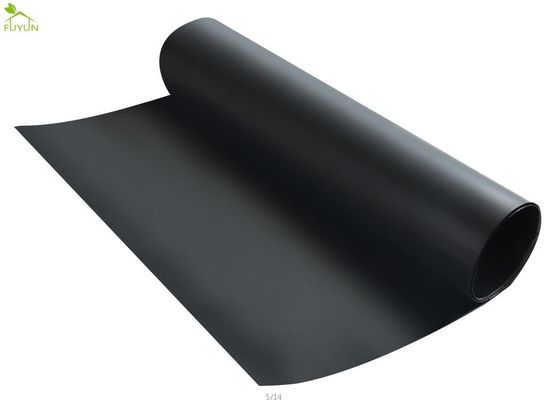

Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 0

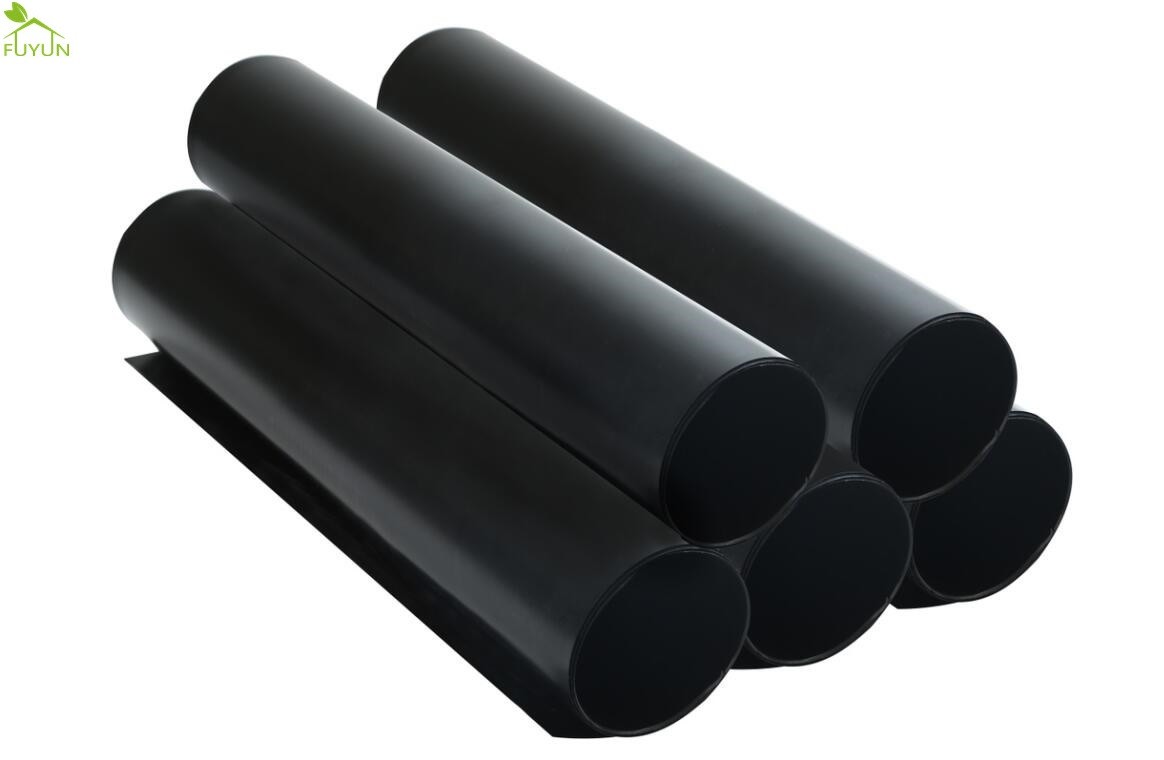

Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 1

Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 2





Advantage:



HDPE GEOMEMBRANE is called "High Density Polyethylene Geomembrane"

1. excellent resistance to environmental stress cracking
2. low temperature resistance, aging resistance
3. corrosion resistance, and a large temperature range (-60-+ 60)
4. longer 50 years of service life, widely used in anti-seepage projects for domestic waste landfills, anti-seepage for solid waste landfills, anti-seepage for sewage treatment plants, anti-seepage for artificial lakes, tailings treatment, etc.





Package:



Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2



Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 3





Factory Show:

Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.



Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 4



Why Choose us?



Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 5



FAQ:



Copper Coal Mining Geomembrane Fabric Waterproof 1.5mm Thickness 7m Width 6
