Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | ISO, GB, BV, SASO, SONCAP |
Model Number: | 2.0MM |
Minimum Order Quantity: | 1000 square meters |
Price: | USD 0.45-1.20 square meters |
Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
Delivery Time: | 7 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 25 Tons per Day |
Length: | 100m/roll | Application: | Sewage Plant, Water Containment |
---|---|---|---|
Material: | HDPE, LLDPE, EVA, PVC, Polyethylene | Function: | Anti Seepage, Waterproof |
Density: | 0.91~ 0.96 G/cm | Product Name: | HDPE Anti-seepage Smooth High Tensile 2.0mm Geomembrane For Water Containment |
High Light: | fish pond Geomembrane Fabric,Geomembrane Fabric for Water Containment,0.91G/cm hdpe fish pond liner |

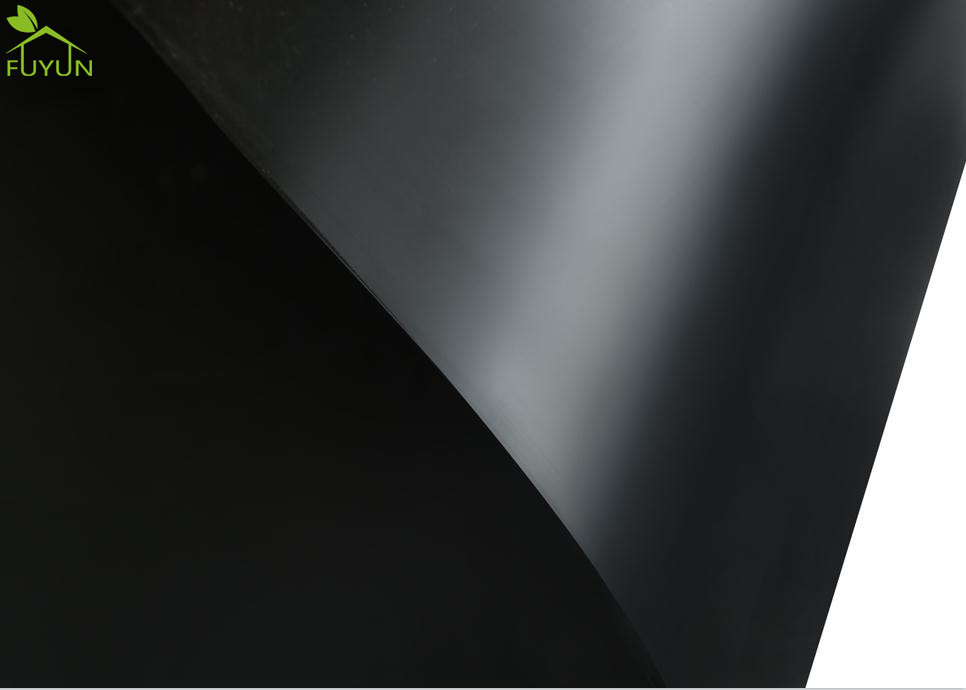

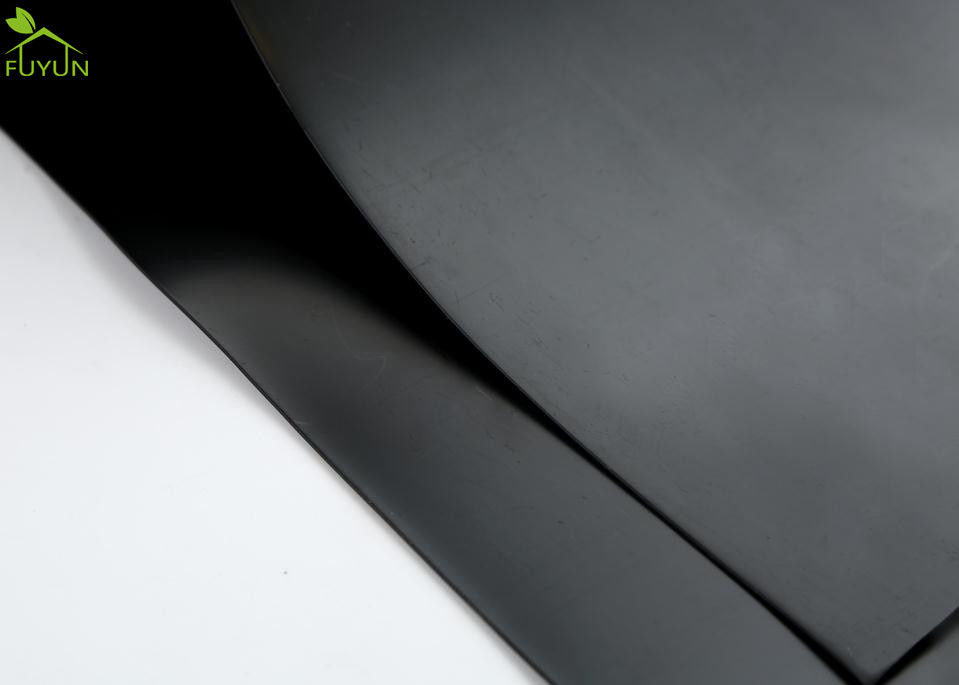

HDPE Anti-seepage Smooth High Tensile 2.0mm Geomembrane For Water Containment
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
Our Anti-seepage HDPE geomembrana is manufactured via triple co-extrusion technique by the most advanced automatic equipment. All the productions are manufactured according to US GRI standards and ASTM, complete specifications with superior quality. The width can reach 8m. Anti-seepage HDPE geomembrane IS far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation than traditional concrete, asphalt and compacted clay.
Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth
Properties | Test | Test Value | Testing Frequency | ||||||||
Method | 30 mils | 40 mils | 50 mils | 60 mils | 80 mils | 100 mils | 120 mils | (minimum) | |||
Thickness (min. ave.) | D5199 | nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Per roll | ||
· lowest individual of 10 values | -10% | -10% | -10% | -10% | -10% | -10% | -10% | ||||
Density mg/l (min.) | D 1505/D 792 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 200,000 lb | ||
Tensile Properties (1) (min. ave.) | D 6693 | 20,000 lb | |||||||||
· | yield strength | Type IV | 63 lb/in. | 84 lb/in. | 105 lb/in. | 126 lb/in. | 168 lb/in. | 210 lb/in. | 252 lb/in. | ||
· | break strength | 114 lb/in. | 152 lb/in. | 190 lb/in. | 228 lb/in. | 304 lb/in. | 380 lb/in. | 456 lb/in. | |||
· | yield elongation | 12% | 12% | 12% | 12% | 12% | 12% | 12% | |||
· | break elongation | 700% | 700% | 700% | 700% | 700% | 700% | 700% | |||
Tear Resistance (min. ave.) | D 1004 | 21 lb | 28 lb | 35 lb | 42 lb | 56 lb | 70 lb | 84 lb | 45,000 lb | ||
Puncture Resistance (min. ave.) | D 4833 | 54 lb | 72 lb | 90 lb | 108 lb | 144 lb | 180 lb | 216 lb | 45,000 lb | ||
Stress Crack Resistance (2) | D5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | per GRI-GM10 | ||
(App.) | |||||||||||
Carbon Black Content (range) | D 4218 (3) | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 20,000 lb | ||
Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | 45,000 lb | ||
Oxidative Induction Time (OIT) (min. ave.) (5) | 200,000 lb | ||||||||||
(a) | Standard OIT | D 3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | ||
— or — | |||||||||||
(b) High Pressure OIT | D 5885 | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | |||
Oven Aging at 85°C (5), (6) | D 5721 | ||||||||||
(a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 | 55% | 55% | 55% | 55% | 55% | 55% | 55% | per each | ||
— or — | formulation | ||||||||||
(b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 | 80% | 80% | 80% | 80% | 80% | 80% | 80% | |||
UV Resistance (7) | D 7238 | ||||||||||
(a) Standard OIT (min. ave.) | D 3895 | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | per each | ||
— or — | formulation | ||||||||||
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) | D 5885 | 50% | 50% | 50% | 50% | 50% | 50% | 50% |
Specification:
general parameter:
Thickness | 0.15-3.0mm & customer ' s requirement |
Width | 1-8m & customer ' s requirement |
Length | 50-200m & customer ' s requirement |
Material | HDPE |
Color | Black,White,Green,Blue & customer ' s requirement |
Surface | Smooth |
Package | Double layers woven bag, and add two strap & customer ' s requirement |
Shipping Marks | support |
Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
Item | Properties | Unit | Thickness | |||||||
1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
2 | Density≧ | g/m3 | 0.94 | |||||||
3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
9 | Stress Crack Resistance | Hrs | 300 | |||||||
10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
High Pressure OIT | ≧ 400 min | |||||||||
13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1, Environmental protection & sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes;
2, Water conservancy projects: such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection, etc.;
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control;
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof, etc;
5, Petrochemical, chemical plants & refineries: storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining, etc.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, waste treatment, seepage of irrigation system;
8, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection, etc.;
9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond Shan membrane.
Advantage:
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
