PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, CE,BV, EN
Model Number: 100KN
Minimum Order Quantity: 1500 Square Meters
Price: USD 0.40-0.75 Square Meter
Packaging Details: Woven Bags, 50-100m/roll, Width 1-6m
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000 Square Meters per Day
Detail Information
Material: Fiberglass Application: Roadbed, Subgrade
Scalation Rate: Less Than 4% Temperature Resistance: From -100 To 280 ℃
Tensile Strength: 30-150KN/m Feature: Temperature Resistance, Anti-static, Light Weight, Long Life
Product Name: 12.7*12.7 PP Plastic 40KN Fiberglass Geogrid Roadbed Stabilization Construction
High Light:

Plastic Soil Stabilization Geogrid

,

PP Soil Stabilization Geogrid

,

biaxial integral geogrid products


Product Description

12.7*12.7 PP Plastic 40KN Fiberglass Geogrid Roadbed Stabilization Construction





Quick Detail:



material: glass fiber

function:  reinforce, strengthen road, prevent road cracks

advantage: high temperature resistance, low cold resistance, anti-aging and corrosion resistance



Product Description:



Glass fiber geogrid is a kind of excellent geotechnical material used for pavement reinforcement, old road reinforcement, subgrade reinforcement and soft soil foundation.It has become an irreplaceable material in the treatment of reflective cracks on asphalt pavement.The product is a semi-steel product made of high-strength alkali free glass fiber by international advanced light knitting process and surface coating.



The reinforcing action of pp biaxial geogrid lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil.



It has high tensile strength and low elongation on both sides of the warp and weft, and has excellent properties such as high temperature resistance, low cold resistance, anti-aging and corrosion resistance.It is widely used in the reinforcement of asphalt pavement, cement pavement and subgrade, railway subgrade, dam slope protection, airport runway, sand control and other projects. It uses glass fiber non alkali and non twist roving as the main raw material and adopts certain weaving process to make the mesh mechanism material, which can protect the glass fiber and improve the overall performance.





Technical Parameter:



features specs GSB-30-30 GSB-40-40 GSB-50-50 GSB-80-80 GSB-100-100 GSB-125-125 GSB-150-150
Grid Mesh Size 12.7*12.7-25.4*25.4
Tensile Strength ( KN/m) Vertical 30 40 50 80 100 125 150
Horizontal 30 40 50 80 100 125 150
Elongation (%) 4 4 4 4 4 4 4
Temperature Resistance -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280





Application:



♦Reinforcement of roadbase in soft soil.
♦Reinforcement of flexible pavement and concrete pavement.
♦Using for road widening and asphalt road repairing.
♦Pavement surface reinforcement of road and airport.

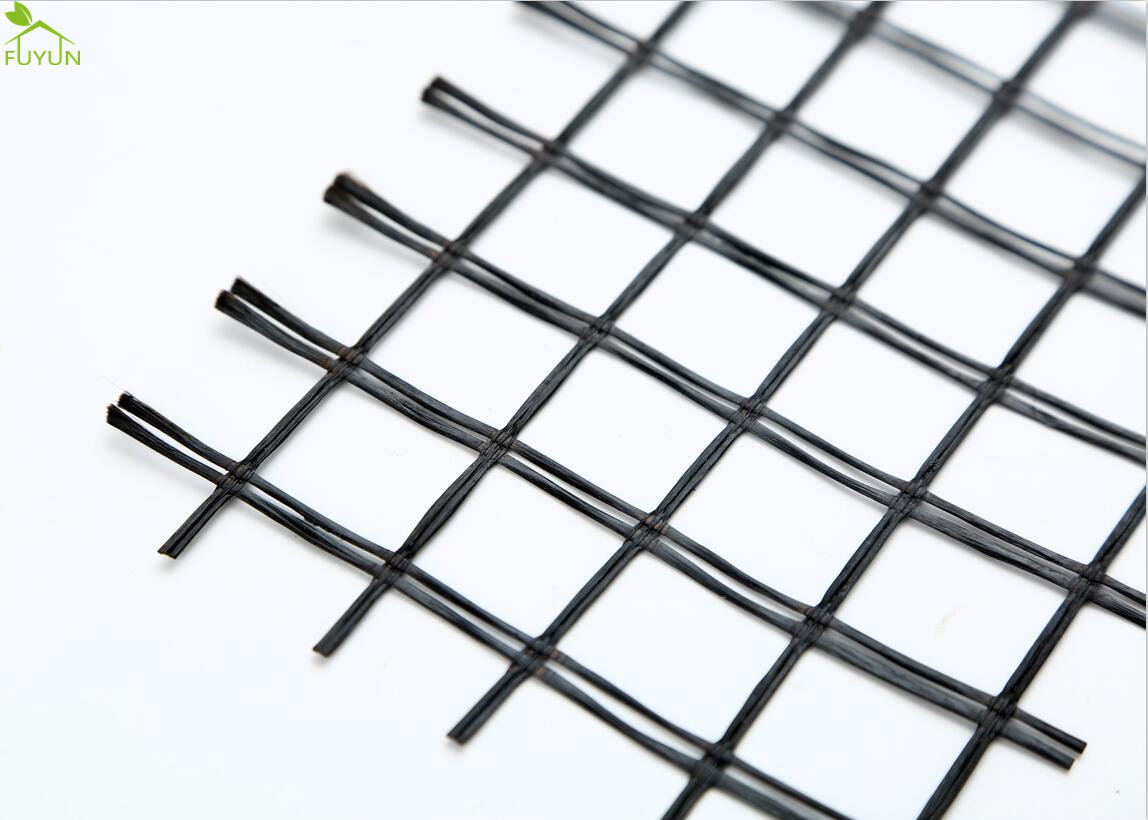

PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 0

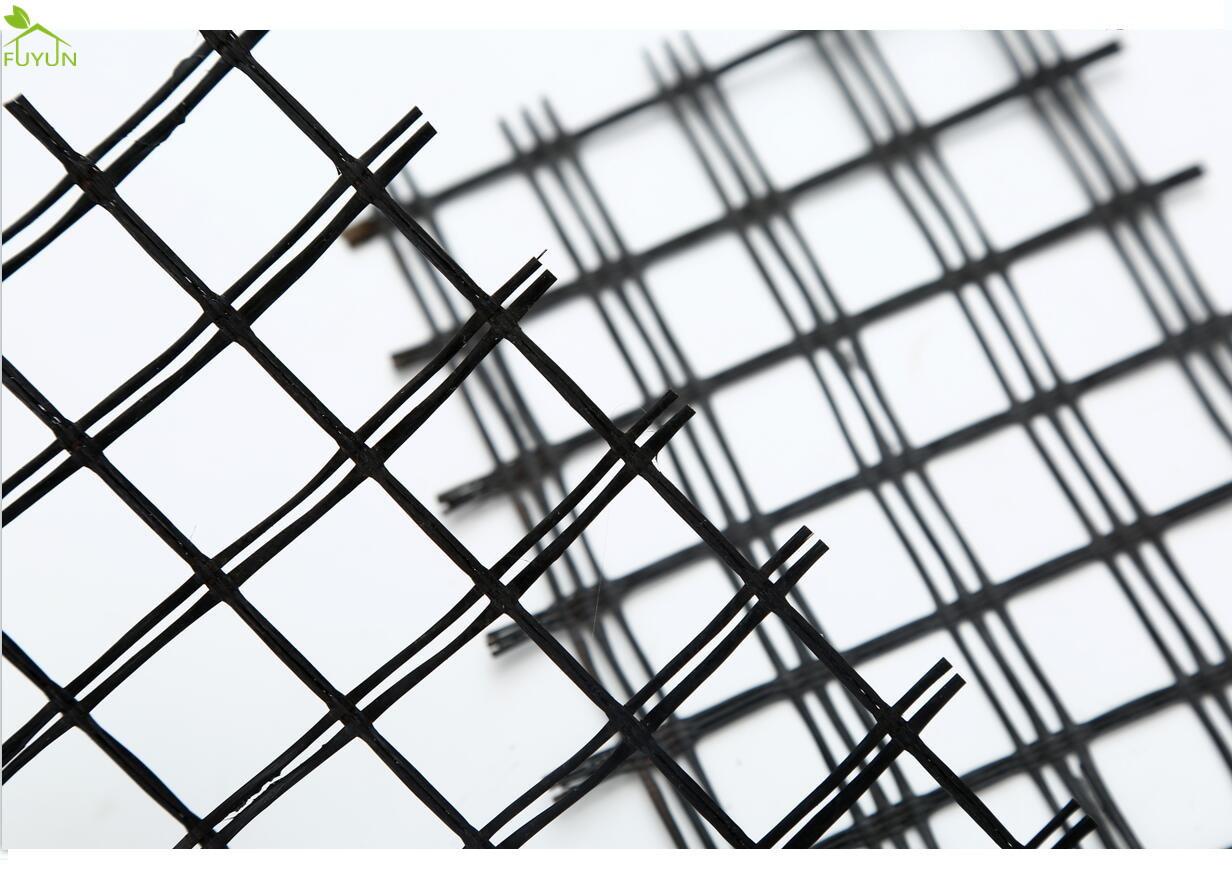

PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 1



Advantage:

  • High tensile strength with low elongation.
  • Excellent temperature resistance and good compatibility with asphalt.
  • Reducing reflective cracking of the road.
  • Easy installation and lower maintenance cost.



Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.



PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 2





Delivery:



It can be shipped in 7 days. Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons.



PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 3





Factory Show:



PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 4





Supply Ability:



25 tons per day





Why Choose US:



PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 5

FAQ:

​​

PP Plastic Soil Stabilization Geogrid , Biaxial Integral Geogrid Products 6
