| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV,CE, SGS |
| Model Number: | 1000 |
| Minimum Order Quantity: | 1100 Square Meters |
| Price: | USD 0.35-0.85 Square Meter |
| Packaging Details: | Well Packed In Woven Bag, Width from 1m to 5m,Length from 50m to 250m |
| Delivery Time: | 5 Days |
| Payment Terms: | Paypal, L/C, D/A, Western Union, D/P, T/T, MoneyGram |
| Supply Ability: | 25.5 Tons per Day |
| Product Name: | Water Conservancy 1.3mm Water Filtration Reinforce PP PET Short Fiber Filament Nonwoven 1000gsm White Geotextile | Weight: | 1000 G/㎡ |
|---|---|---|---|
| Application: | Water Conservancy, Sewage Plant, Coastal Beach, Road, Railway, Dam | Material: | Polyester, Polypropylene |
| Rolling Size: | Width: From 1m To 5m, Length: From 50m To 250m | Function: | Filtration, Reinforcement |
| High Light: | 1.3mm Non Woven Geotextile Filter Fabric,Water Conservancy Non Woven Geotextile Filter Fabric,1.3mm geotextile membrane waterproofing |
||

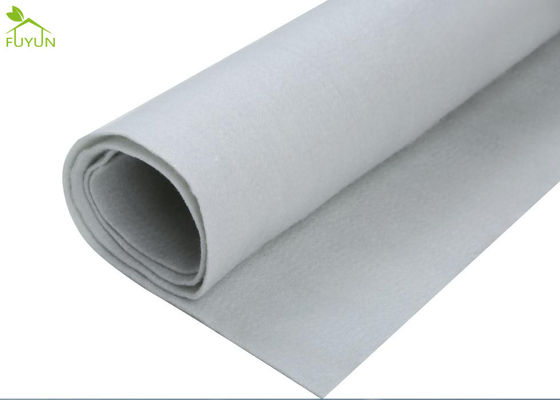

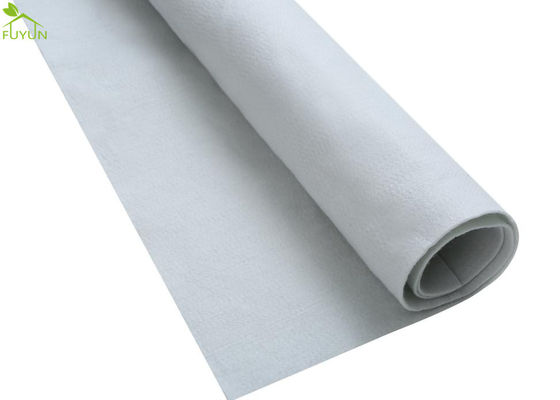

Water Conservancy 1.3mm Water Filtration Reinforce PP PET Short Fiber Filament Nonwoven 1000gsm White Geotextile
Quick Detail:
function: filtrate, isolate and reinforce
thickness: 1.3mm
elongation at Break (%): 25-100
application: flood dike, water conservancy, sewage plant, road, railway, dam, coastal beach,
Product Description:
Our company geotextile is a new engineering construction material for civil engineering stipulated in our country.
1. It is made of filament or short filament fibers being laid into nets by advanced machines and special procedures.
2. It is interweaved with different fibers by needling punch and other processes.
So that the fabric can be standardized product. This makes the fabric plump, soft, stiff and thick to meet the requirements of different thickness. Geotextile can be divided into filament non-woven geotextile and short non-woven geotextile according to the length of yarn.
PP /PET filament needle punched non-woven geotextile, it is geotechnical engineering and civil engineering applications in a geosynthetics, is through the polypropylene / polyester filament into a network and consolidation method, the fiber arranged into a three-dimensional structure The In addition to good mechanical properties, but also has a good vertical and horizontal drainage performance and good extension properties and high resistance to biological, acid and alkali, anti-aging and other chemical stability. At the same time, it also has a wide pore size range, tortuous pore distribution, excellent permeability and filtration performance.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm ,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
It is mainly used for reinforcement, filtration, isolation and drainage of flood dike, water conservancy, dyke, highway, railway, coastal beach and other engineering projects, especially for saline alkali swamp, landfill and sewage plant project.
Advantage:
1.High tensile strength, anti-deformation, resistance to tear and puncture .
2.Excellent water permeability and filterability .
3.Good resistance to aging ,biological ,acid and alkali.
4.Resistance to corrosion and UV
5.Excellent good performance and reinforced performance .
Package:
packed as rolls with tight belt and woven bags. I t can gurantee onvenient unloading and protecting product.
Delivery:
Delivery product will be loaded as requirement to make sure it can be well protected. 20GP Container can load around 19.5 tons, 40HQ 25.5 tons. It casn be shipped in 5 days.
