| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV,CE, SGS |
| Model Number: | 800 |
| Minimum Order Quantity: | 1100 Square Meters |
| Price: | USD 0.15-0.65 Square Meter |
| Packaging Details: | Woven Bag with Tight Belt, Width from 1m to 5.5m,Length from 45m to 210m |
| Delivery Time: | 8 Days |
| Payment Terms: | T/T, D/P, L/C, D/A, Paypal, Western Union, MoneyGram |
| Supply Ability: | 26 Tons per 8hrs |
| Product Name: | 50m Length 5.5mm Ployester Filament Nonwoven Geotextile Fabric As Reinforcement Layer On Loose Soils | Weight: | 800 G/㎡ |
|---|---|---|---|
| Application: | Weak Foundation Road, Loose Soil | Material: | Polyester |
| Function: | Reinforce, Protect | Rolling Size: | Width: 1m To 5.5m, Length: 45m To 210m |
| High Light: | 800g/M2 Polypropylene Geotextile Membrane,Polypropylene Soil Stabilization Fabric,Tear Resistance Polypropylene Geotextile Membrane |
||

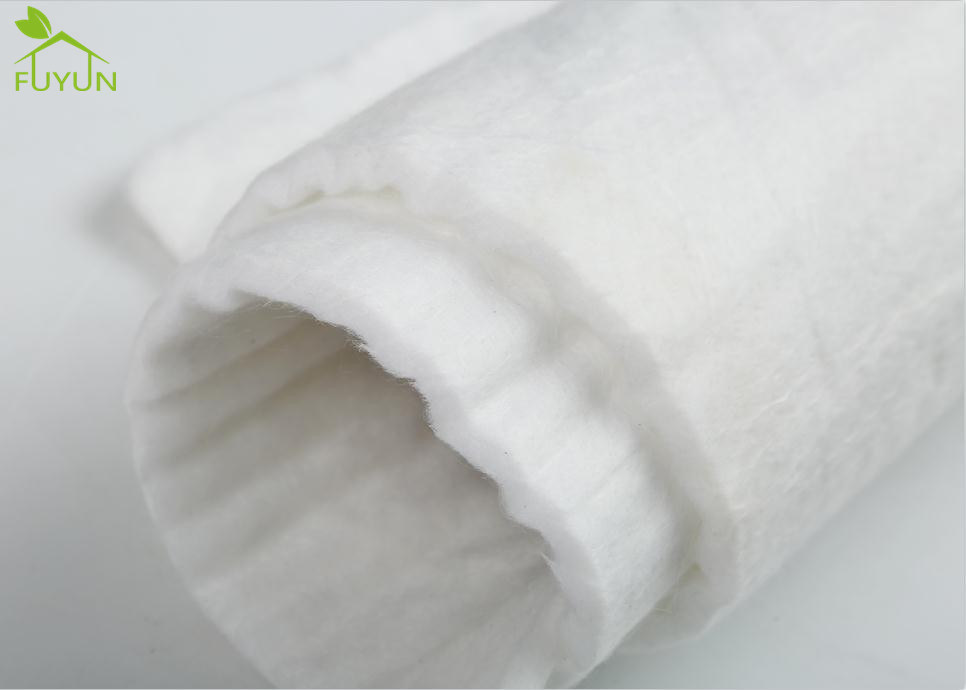

50m length 5.5mm Ployester Filament Nonwoven Geotextile Fabric As Reinforcement Layer On Loose Soils
Quick Detail:
function: protect, reinforce
type: 800
thickness: 5.5mm
application: weak foundation road, highway, railway
material: ployester
Product Description:
The geotextile that our company made is a new type of construction material (virgin polyester chips) for civil engineering stipulated by the state. It has 2 types: filament and short filament fibers. Our geotextile is laid into nets through different equipment and processes, and then interweaved with different fibers through needling punched and other special spunbond processes, so as to make the fabric standardized.
This makes the fabric soft, plump, thick and stiff to meet the requirements of different thickness. According to the length of yarn, it can be divided into filament non-woven geotextile and staple non-woven geotextile.
Filament geotextile punchs together to get the stable 3D with highter strength fabric so the tensile strength of filament is higher than that of short geotextile. Because the fiber is soft and has a certain tear resistance, meanwhile, it has a good function of sewage filtration, water filtration and reinforcement. Specifications range from 100 g/㎡ to 800 g/㎡. The main material is polyester fiber, with superior water permeability, filtration, durability, deformation adaptability and plane drainage capacity.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 1 | Mass Deviation Per Unit Area (%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | ||
| 2 | Thickness(mm ,≧) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 40-80 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Horizontal & Vertical | |
Application:
* Geotextile is used as a separating (filtering) layer between soil and fill materials (sand, gravel, chippings, etc);
* Geotextile with high density can be used as reinforcement layer on flexible soils;
* Applied to reinforce beds of dirt collectors acting at the same time as filters and substituting for a sand layer;
* Prevents soil particles get into drain systems (basement and flat roofs drainage);
* While tunnel construction geotextile protects insulation coating from damages, forms a drain layer, drains away ground and storm waters;
* Geotextile acts as a filter under bank reinforcement;
* Applied as heat and acoustic insulation.
Advantage:
It has good mechanical properties, water permeability, corrosion resistance, aging resistance,
Strong anti burying and anti-corrosion performance, fluffy structure and good drainage performance
High elongation under certain stress, thus able to adapt to uneven and irregular bases
It has good friction coefficient, tensile strength and georeinforcement performance.
It has the functions of isolation, filtration, drainage, protection, stabilization and strengthening.
It can adapt to the uneven base, resist the damage of external force, and has small creep.
Good overall continuity, light weight and convenient construction.
Package:
well packed in pipe core rolls, 2-layer woven bags with strengthened belt for unloading convenience and protecting.
Delivery:
Delivery product will be well loaded carefully according to customers' requirement. 20GP Container can load around 19.5 tons, 40HQ 25.5 tons. It casn be shipped in 7 days.
