| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | GB, ISO, CE, BV, SGS |
| Model Number: | 600 |
| Minimum Order Quantity: | 1150 Square Meters |
| Price: | USD 0.25-0.75 Square Meter |
| Packaging Details: | Woven Bag with Tight Belt, Width from 1m to 6.5m,Length from 45m to 215m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, D/P, Western Union, L/C, Paypal, MoneyGram |
| Supply Ability: | 26.5 Tons per 8hrs |
| Product Name: | Factory Price Water Conservancy Isolation Drainage Ployester Filament Nonwoven White 600gsm Geotextile | Weight: | 600 G/㎡ |
|---|---|---|---|
| Application: | Water Conservancy | Material: | PET Polyester |
| Function: | Isolation, Drainage | Rolling Size: | Width: 1m To 6.5m, Length: 45m To 215m |
| Thickness: | 4.2mm | ||
| High Light: | 600gsm Nonwoven Geotextile Fabric,Nonwoven Geotextile Fabric Filter,road construction geotextile fabric |
||

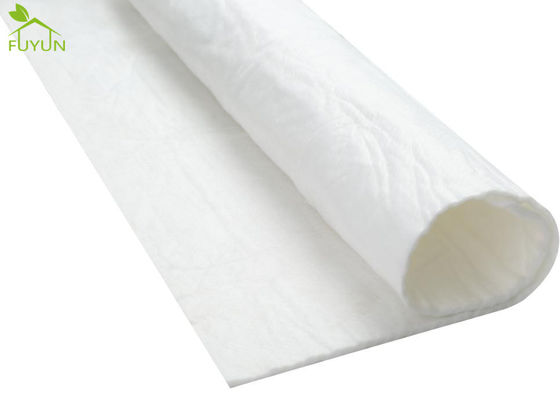

Factory Price Water Conservancy Isolation Drainage Ployester Filament Nonwoven White 600gsm Geotextile
Quick Detail:
function: isolation, seperate, drainage
material: PET polyester
thickness: 4.2mm
application: water conservancy, dam, sewage plant
Product Description:
The geotextile that our company made is a new type of construction material is made from polyester or polypropylene in random directions and punched together by needles for civil engineering project in our country. It includes 2 types: short filament and filament fibers. Our geotextile is laid into nets by different machines and technologies, and then interweaved within different fibers by needling punched and other special spunbond processes.
This makes the fabric plump, soft, stiff and thick to meet different thickness's requirements. According to the length of yarn, it can be divided into filament and short non-woven geotextile.
Filament geotextile needle punched together to get the stable 3D with highter tensile strength fabric so the tensile strength of filament is higher than that of short one. Because the fiber is soft and has a certain tear resistance, meanwhile, it has a good function of sewage filtration, reinforcement and water filtration. Specifications range from 100 g/㎡ to 800 g/㎡. The main material is polyester fiber, with superior water permeability, deformation adaptability filtration, durability, deformation adaptability and plane drainage capacity.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 1 | Mass Deviation Per Unit Area (%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | ||
| 2 | Thickness(mm ,≧) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 40-80 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Horizontal & Vertical | |
Application:
It is used in isolation, drainage, filtration and reinforcement of water conservancy, weak foundation road, dyke, highway, railway, flood dikes, coastal beach and other engineering projects, especially for saline alkali swamp and landfill.
Advantage:
It has water permeability, good mechanical properties, corrosion resistance, aging resistance,
Good drainage performance and strong anti burying and anti-corrosion performance, fluffy structure.
High elongation under certain stress, being able to adapt to uneven and irregular bases
It has good tensile strength, friction coefficient, and georeinforcement performance.
Good overall continuity, light weight and convenient construction.
It can adapt to the uneven base, resist the damage of external force, and has small creep.
Package:
well packed in pipe rolls, 2-layer woven bags with strengthened belt for unloading conveniently and protecting.
Delivery:
Delivery product will be well loaded carefully according to customers' requirement. 20GP Container can load around 19.5 tons, 40HQ 25.5 tons. It casn be shipped in 7 days.
