| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, CE,BV, EN |
| Model Number: | 30-150KN |
| Minimum Order Quantity: | 1000 Square Meters |
| Price: | USD 0.45-1.0 Square Meter |
| Packaging Details: | Woven Bags, 50-100m/roll, Width 1-6m, Customized |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000 Square Meters per Day |
| Length: | 50m/roll | Width: | 6m |
|---|---|---|---|
| Scalation Rate: | Less Than 4% | Temperature Resistance: | From -100 To 280 ℃ |
| Tensile Strength: | 100KN/m | Feature: | Temperature Resistance, Anti-static, Light Weight, Long Life |
| Material: | High Molecular Polymer | Product Name: | 50m Length Geo Ground Grid Driveway , Unidirectional Extruded Geogrid |
| High Light: | 50m Extruded Geogrid,50m Geo Ground Grid Driveway,Unidirectional Extruded Geogrid |
||

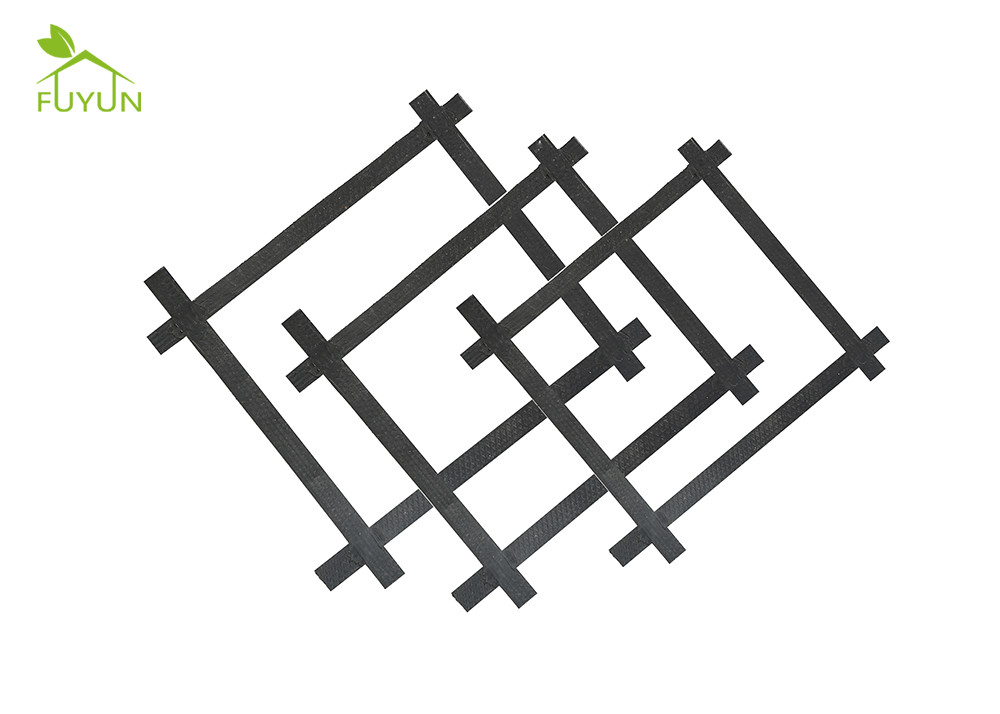

50m Length Geo Ground Grid Driveway , Unidirectional Extruded Geogrid
Quick Detail:
length: 50m
material: high molecular polymer
function: reinforce, strengthen road, prevent road cracks
advantage: high temperature resistance, low cold resistance, anti-aging and corrosion resistance
Product Description:
Bi directional geogrid is made of high molecular polymer through extrusion, forming plate, punching process, and then through longitudinal and transverse tension.
It also has high tensile strength and low elongation on both sides of the warp and weft, and has excellent properties such as high temperature resistance, low cold resistance, anti-aging and corrosion resistance.It is widely used in the reinforcement of asphalt pavement, cement pavement and subgrade, railway subgrade, dam slope protection, airport runway, sand control and other projects.
Technical Parameter:
| 1 | Type | TGDG30-30 | TGDG50-50 | TGDG80-80 | TGDG100-100 | TGDG120-120 | |
| 2 | Ultimate Tensile Strength (KN/m≥) | 30 | 50 | 80 | 100 | 120 | |
| 3 | Ultimate Elongation (%≤) | 3 | 3 | 3 | 3 | 3 | |
| 4 | Tensile Strength of Elongation at 1% (KN/m≥) | 23 | 36 | 48 | 63 | 81 | |
Application:
1)Well pull: Longitudinal and crosswise tensile strength per linear meter can reach 30 to 120 KN.
2) Small deformation: the yield elongation of steel plastic integral geogrid is not bigger than 3%.
3) Nodal point is high.
4) Lifespan is long. It has the properties of anti - oxidation and anti - aging. It can be possible to meet each kind of permanent works and its lifespan can be 100 years above.
5) It can reduced the project cycle effectively and saved 10% to 50% of the building cost of projects.
6) The construction is convenient. It is easy to lay, join, locate and flat.
Advantage:
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Delivery:
Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days in normal season.
Factory Show:
Supply Ability:
more than 25 tons per day
Why Choose US:
FAQ:
