| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, SGS, BV, GB, ASTM |
| Model Number: | 500gsm |
| Minimum Order Quantity: | 1950 Square Meters |
| Price: | USD 0.95-1.55 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Short Filament Nonwoven Geotextile Fabric 500g For Rivetment Wall Alone Sea Shore Coastline | Weight: | 500 G/㎡ |
|---|---|---|---|
| Material: | Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 500m |
| Function: | Drainage, Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Sea Coastline Subsoil Drain, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | 500g Nonwoven Geotextile Fabric,Short Filament Non Woven Geo Fabric,Short Filament Nonwoven Geotextiles |
||

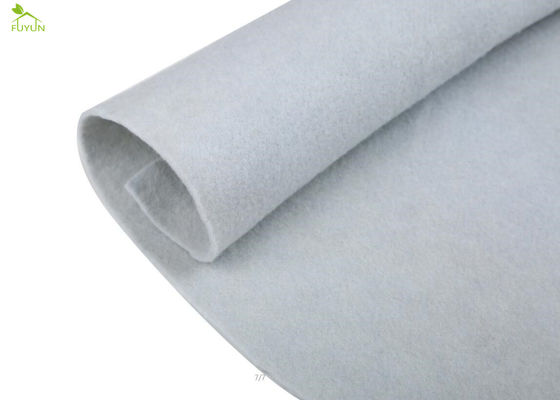

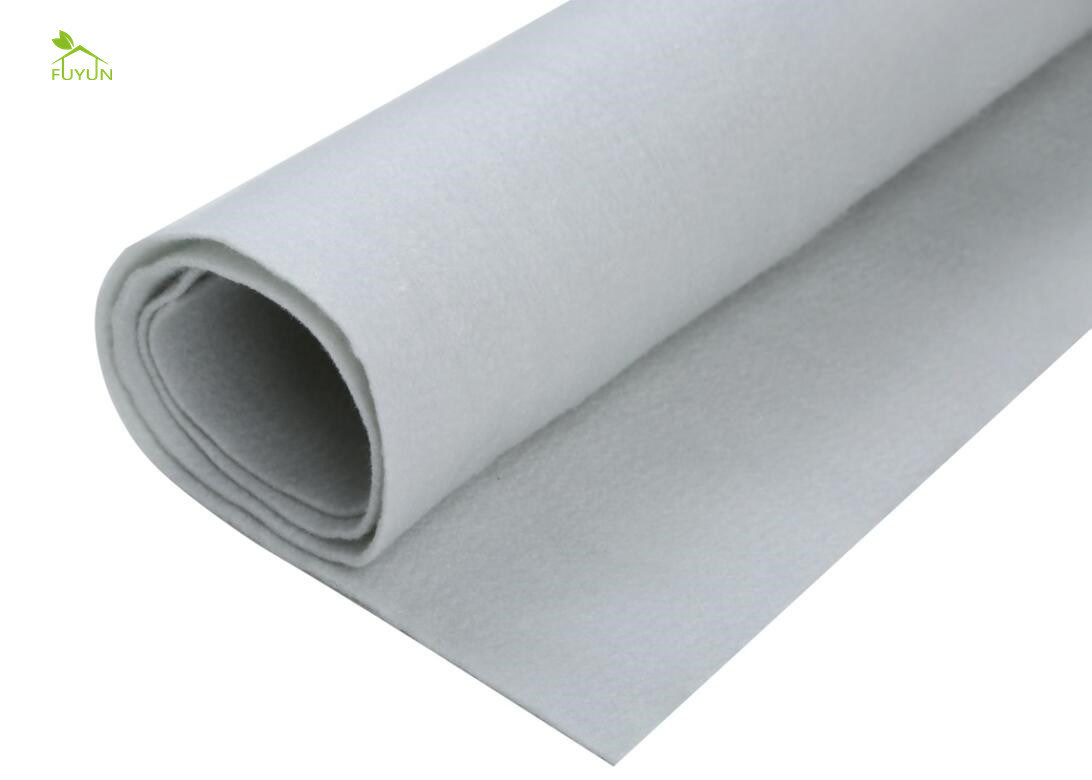

Short Filament Nonwoven Geotextile Fabric 500g For Rivetment Wall Alone Sea Shore Coastline
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 2.0mm
application: tidal reclamation project, coastal, flood dam, subsoil
Product Description:
Nonwoven geotextiles are permeable geosynthetics161 made of nonwoven materials used with soil, rock, or other geotechnical-related material as an integral part of a civil engineering project, structure, or system. They are frequently made from synthetic polymers such as polypropylene, polyethylene, polyamide, and polyester, as well as natural fibres such as jute, sisal, and coir. The European standards (EN) for the specifications and performance requirements of geotextiles in application areas (roads and other trafficked areas,railways,earthworks, foundation and retaining walls, drainage systems, erosion control,reservoirs and dams, canals, tunnels and underground structures, solid waste disposal,liquid waste containment, and asphalt reinforcement) are defined. Their primary functions include filtration (to prevent soils from migrating into the adjacent material, such as drainage aggregate, while allowing water to flow through the system), drainage (to allow water to drain from or through low-permeability soils), separation (to separate the two dissimilar materials and prevent them from mixing), reinforcement (to increase shear strength of soils), and erosion control (to minimise the movement of soil particles due to flow of water). Therefore, there are a series of standard test methods defined in international and national standards to characterise its properties in relation to those five aspects of performance.
Filtration:
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
Reinforcement:
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
Sealing:
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
