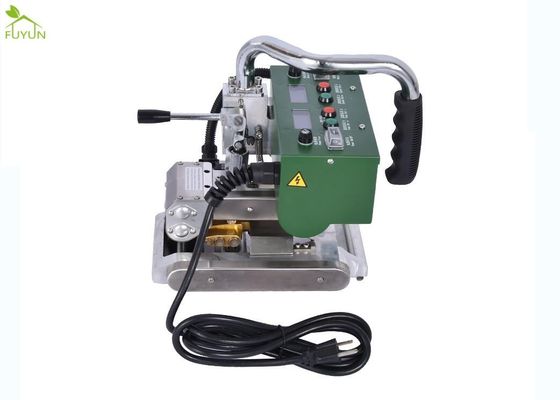

3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1

3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1

  • 3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1
  • 3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1
3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1
Product Details:
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB
Model Number: SWT-NSGM1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 1000-2000 set
Packaging Details: waterproof box
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Contact Now
Detailed Product Description
Frequency: 50/60Hz Application: Geomembrane Plastic, HDPE, LDPE, PVC, EVA ,PVC, ECB, PP
Warranty: 2 Years Product Name: Hot Air Welding 50/60Hz 110V 7.5KG SWT-NSGM1 For 3mm Geomembrane Plastic HDPE LDPE PVC Fishpond Liners
Welding Speed: 0.5-8 M/min Voltage: 110V
High Light:

SWT-NSGM1 dam liner welding machine

,

60Hz dam liner welding machine

,

SWT-NSGM1 portable pvc welding machine

Hot Air Welding 50/60Hz 110V 7.5KG SWT-NSGM1 For 3mm Geomembrane Plastic HDPE LDPE PVC Fishpond Liners





Quick Detail:



machine size: 350*267*267mm

weight: 7.5kg

frequency: 50/60Hz

voltage: 110V

power: 1200w

welding speed: 0.5-8 m/min





Product Description:



Geomembrane Hot Wedge Welding Machines are also called Hot Air Welding, Hot wedge welders,Membrane Hot Wedge Welder. SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.




Hot Wedge Welding Machine is one of many welding equipment. The main welding objects: HDPE, PE-C, PP, LDPE. Groove surface geomembrane, anti-seepage film; mechatronics design, small size, light weight, field site. The operation has good operability. Double welding seam overlap welding, high temperature control accuracy, high welding strength, good sealing effect, the middle is the leak detection weld bead, automatic crawling can achieve slope, vertical, inverted automatic welding.




The welding machine has excellent performance, easy operation, fast welding speed and good welding quality. Widely used in highways, railways, tunnels, Bridges, reservoirs, buildings, artificial lakes, Bridges, swimming pools, aquaculture ponds, landfills and other waterproof engineering. The automatic welding machine is designed to weld film/membrane, including HDPE LDPE, PVC, EVA Geomembrane, Composite Geomembrane. Small light, easy to operate. it can be adjusted to accommodate the different thickness to make the welding stronger, avoid leakage. This machine is more suited to fast welding of large areas, such as landfill, pond liner, mining dam bottom liner welder.





Technical Parameters:



Item no.: SWT-NSGM1
Size 350*267*267mm
Weight 7.5KG
Voltage: 220V
Frequency: 50/60HZ
power 1200W
Welding Speed 0.5-8 m/min
Thickness of material 0.2-2.0 mm
Welding width 15 mm *2, interior cavity 20 mm
Overlap width 120 mm
Welding temperature
0-450°C

Seam Strength ≥85% base material ( tensile resistant in shear direction)





Application:



Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.

3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1 0



Advantage:

  • excellent performance
  • easy operation
  • good welding quality
  • available for welding different thickness



Package & Delivery:



The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.



3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1 1





Why choose us?



3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1 2



FAQ:



3mm Pvc Dam Liner Welding Machine Portable 50/60Hz SWT-NSGM1 3

0-450°C
