| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV,CE, SGS |
| Model Number: | 50×6 |
| Minimum Order Quantity: | 1000 Square Meters |
| Price: | USD 0.1-0.6 Square Meter |
| Packaging Details: | Woven Bag, Width from 1m to 6m,Length from 50m to 200m |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Color: | White | Type: | 50×6 |
|---|---|---|---|
| Weight: | 100-1500 G/㎡ | Package: | Woven Bag |
| Application: | Road, Railway, Dam, Coastal Beach | Material: | 100% Polyester |
| Function: | Water-Filtration, Reinforcement, Isolation | Pattern: | Nonwoven |
| Rolling Size: | Width From 1m To 6m,length From 50m To 200m | Keywords: | Geotextile, Spunbond, Filament |
| High Light: | 50×6 non Woven Geotextile Drainage Fabric,saline alkali swamp Filament Geotextile,Saline Alkali Swamp Filament Geotextile |
||

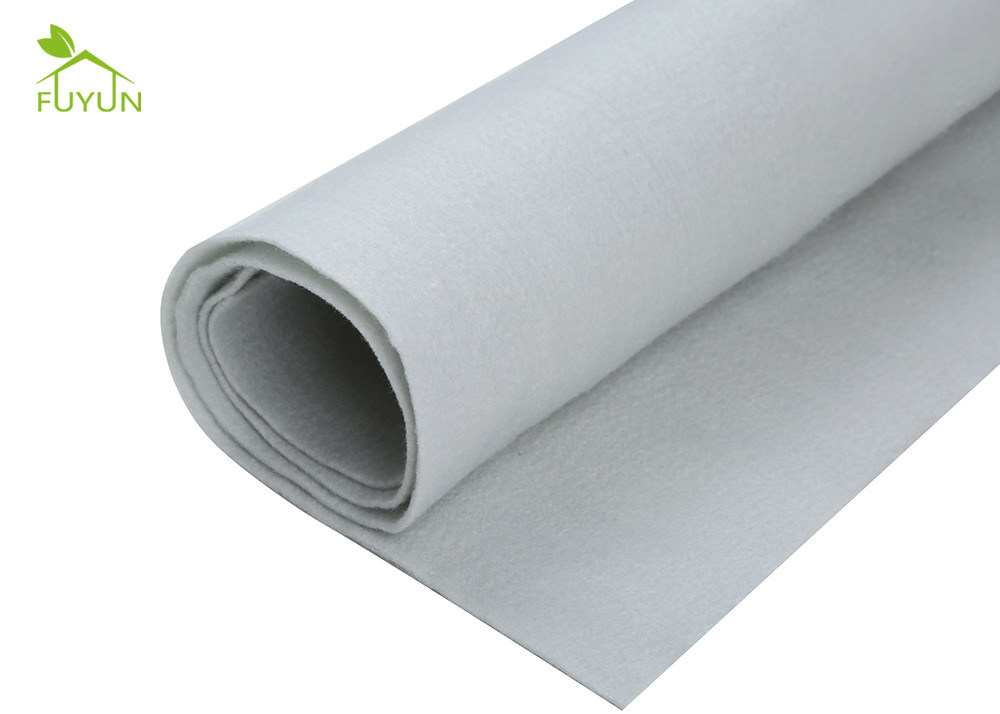

100% Ployester Short Fiber Filament Nonwoven Water-Filtration Reinforcement Isolation 50×6 Geotextile
Quick Detail:
function: filtration, reinforcement and isolation
type: 100-800
thickness: 0.9-5.0mm
Elongation at Break (%): 25-100
Product Description:
The geotextile produced by our company is a new type of construction material for civil engineering stipulated by the state. It is made of filament or short filament fibers, which are laid into nets through different equipment and processes, and then interweaved with different fibers through needling and other processes, so as to make the fabric standardized. This makes the fabric soft, plump, thick and stiff to meet the requirements of different thickness. According to the length of yarn, it can be divided into filament non-woven geotextile and staple non-woven geotextile.
The tensile strength of filament is higher than that of staple. Because the fiber is soft and has a certain tear resistance, at the same time, it has a good function of filtration, water filtration and reinforcement. Specifications range from 100 g/㎡ to 800 g/㎡. The main material is polyester fiber, with superior water permeability, filtration, durability, deformation adaptability and plane drainage capacity.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness(mm ,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
It is mainly used for reinforcement, filtration, isolation and drainage of highway, railway, dyke, coastal beach and other projects, especially for saline alkali swamp and landfill. Its main function is filtration, reinforcement and isolation.
Advantage:
It has good mechanical properties, water permeability, corrosion resistance and aging resistance.
It has strong anti burying and anti-corrosion performance, fluffy structure and good drainage performance.
It has good friction coefficient, tensile strength and georeinforcement performance.
It has the functions of isolation, filtration, drainage, protection, stabilization and strengthening.
It can adapt to the uneven base, resist the damage of external force, and has small creep.
Good overall continuity, light weight and convenient construction.
Package:
Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting.
Delivery:
Delivery product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It casn be shipped in 7 days.
