| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, SASO, GB, SONCAP, BV |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 1.25-8.55 square meters |
| Packaging Details: | packed in roll with pipe core and woven bag |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Bank, Slope, River Dam, Flood Dyke, Reservoir, Oil Tank | Material: | HDPE, PVC, LDPE, Polyethylene |
|---|---|---|---|
| Function: | Anti-seepage, Reinforce, Protect, Anti Skip Slippery | Product Name: | Chemical Factory Non Skid Slippery Anti Seepage Rough Surface Textured Geomembrane Single Double Side |
| Thickness: | 1.0mm | Length: | 200m, Customize |
| Width: | 6m | Origin: | Made In China |
| High Light: | Non Skid Hdpe Geomembrane Liner,Anti Seepage Hdpe Geomembrane Liner,Geotech Fabric Textured |
||

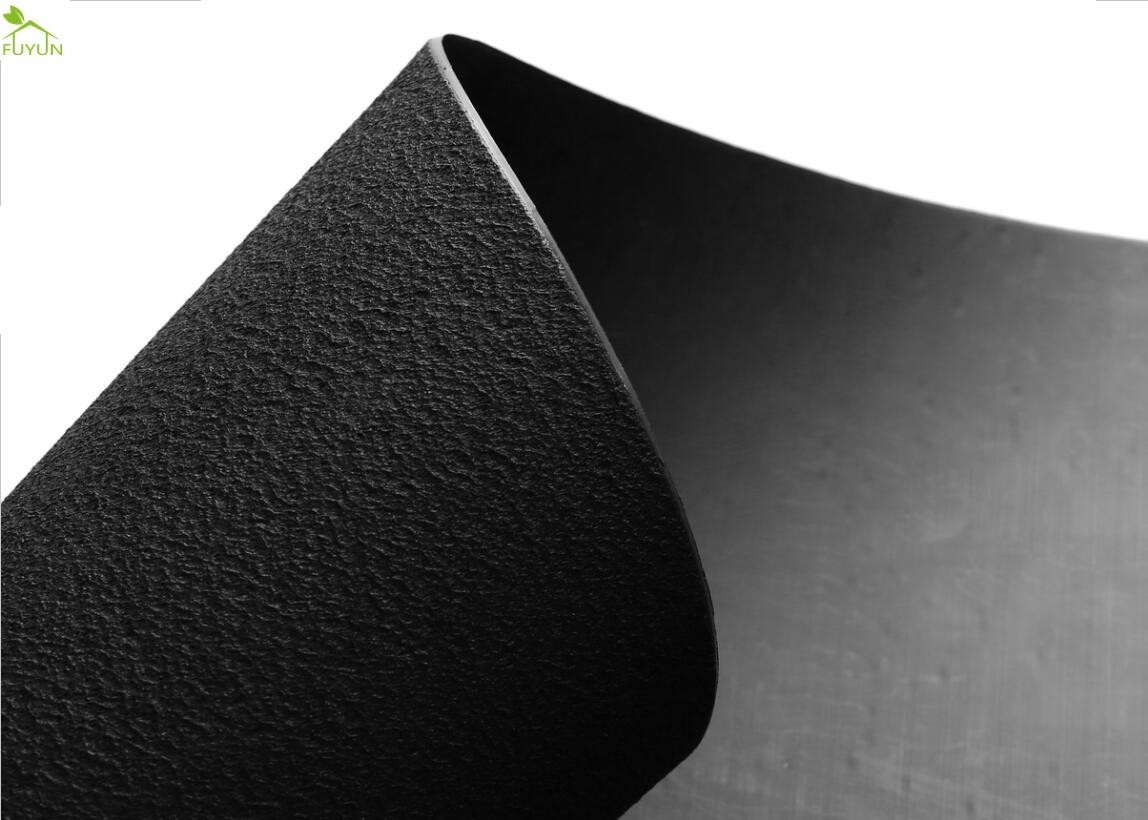

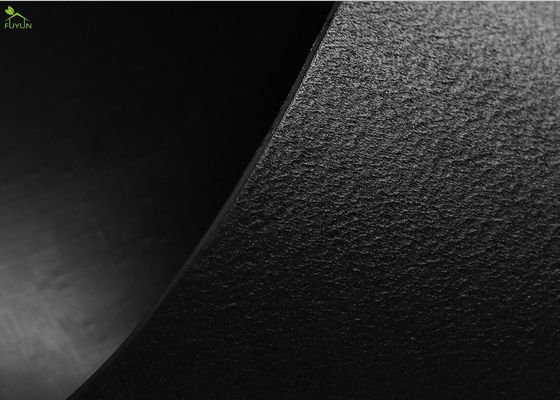

Chemical Factory Non Skid Slippery Anti Seepage Rough Surface Textured Geomembrane Single Double Side
Quick Detail:
Application:
1. Seepage proof lining of subway, basement and tunnels.
2. Prevention of seepage by salting of roadbed and other foundations.
3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.
4. Seawater and freshwater aquaculture farms.
5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.
6. Seepage prevention of roof.
7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
HDPE Textured Geomembrane is a proven solution for landfill base liners and water resource management where chemical resistance and superior durability are required. It is ideal for a variety of industries and applications, from agricultural irrigation and water conservation to oil and gas containment and mining.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Advantage:
1. good flexibility and high impervious coefficient.
2. good heat and cold resistance and can be used in a wide temperature range.
3. good chemical properties and strong corrosion resistance.
4. strong weather resistance and excellent aging resistance.
5. thigh tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
