| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | CE, ISO, SGS, BV, GB, ASTM |
| Model Number: | 800 |
| Minimum Order Quantity: | 1550 Square Meters |
| Price: | USD 0.55-0.95 Square Meter |
| Packaging Details: | packed as roll in woven bag, width: from 1m to 5m, length: from 55m to 260m |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, D/A, Western Union, D/P, MoneyGram, L/C, Paypal |
| Supply Ability: | 28.5 Tons per Day |
| Product Name: | Non Woven Short Filament Geotextile Lining Fabric For Gravel Paths Construction | Weight: | 800 G/㎡ |
|---|---|---|---|
| Material: | Non Woven Fabric | Rolling Size: | Width: From 1m To 6m, Length: From 60m To 260m |
| Function: | Protect Water, Isolate, Reinforce, Drainage, Separate Soil | Application: | Gravels Paths, Gabion Walls, Water Source Project, Coastal, Flood Dam |
| Origin: | Made In China | ||
| High Light: | 800g/m2 Nonwoven Geotextile Fabric,Gravel Paths Construction Nonwoven Geotextile Fabric,Isolate Nonwoven Geotextile Fabric |
||

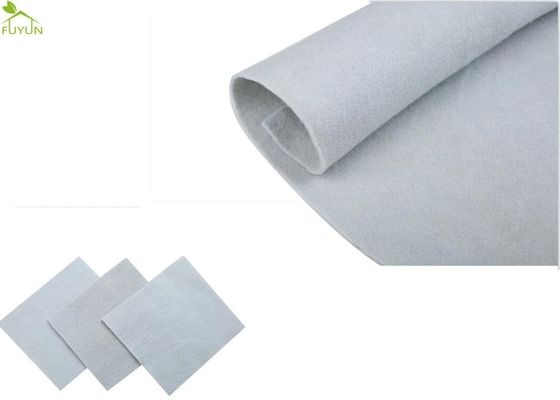

Non Woven Short Filament Geotextile Lining Fabric For Gravel Paths Construction
Quick Detail:
material: polyester, polypropylene(PET, PP)
function: protect, isolate, reinforce, drainage, enhance, separate soil
thickness: 6mm
application: tidal reclamation project, coastal, flood dam
Product Description:
Our company offers an extensive range of woven and non-woven geotextiles with varied weights and properties to suit an array of applications. These geotextile fabrics designed with 100% polypropylene raw materials are engineered to resist ultraviolet deterioration, rotting, biological degradation, and natural occurring alkaline and acids.
When the yarn is long, it can make non woven filament fibers, when yarn is short, it can make short non woven filament fibers.
The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ and high creep resistance to make sure maintain structure stability, high flat drainage, high elongation under certain stress and vertical permeability, so can be applied in uneven and irregular foundation, especially sea coastal bases. Lots of tidal reclamation projects can use short non-woven geotextile filament fiber as materials.
Geotextile prevents the interception between two adjacent soils.For example, separating fine subsoil soils from lower coarse aggregates preserves the drainage and strength characteristics of geotextile composite materials.
Filtration:
A balance of a geotextile to soil system that allows sufficient fluid flow in the plane of geotextile with limited soil loss.
Perforation and permeability are the most important properties of geotextiles with infiltration action.
Reinforcement:
The introduction of geotextiles into the soil will increase the tensile strength of the soil by the same amount of metal concrete.
Sealing:
A layer of nonwoven geotextile is saturated between existing and new asphalt layers.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Advantage:
Package:
all products will be packed well with woven bags and tight belts, or packed according to customer's requirement,
3Tons per 20ft container;
5Tons per 40ft container;
8Tons per 40HQ container.
Delivery:
all products will be delivered in time according to the requirement,
