| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, BV, SASO, SONCAP, ASTM |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 1.45-2.25 square meters |
| Packaging Details: | Woven Bags, 20GP loads 19 tons, 40HQ loads 25 tons |
| Delivery Time: | 10Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Length: | 150m/roll | Application: | Rain Water Storage, Fish Tank, Fish Pond, Shrimp Pond |
|---|---|---|---|
| Material: | HDPE, LLDPE, PVC, Polyethylene, EVA | Function: | Anti Seepage，temperature Control, Oxygenation |
| Density: | 0.90~ 0.96 G/cm | Product Name: | 1.0mm Thickness HDPE Geomembrane Fabric Rain Water Storage Tank Pond Liner Anti Puncture |
| Certificate: | ASTM, ISO | Width: | 6m |
| High Light: | Geomembrane Fabric 1.0mm Thickness,Anti Puncture Geomembrane Fabric,Water Storage Tank Geomembrane Fabric |
||

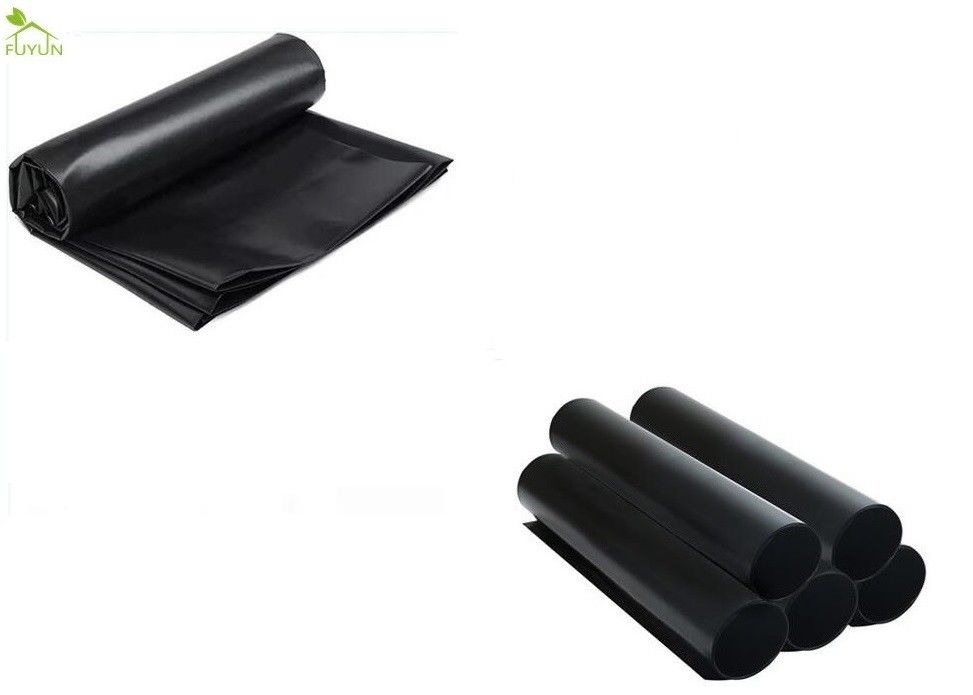

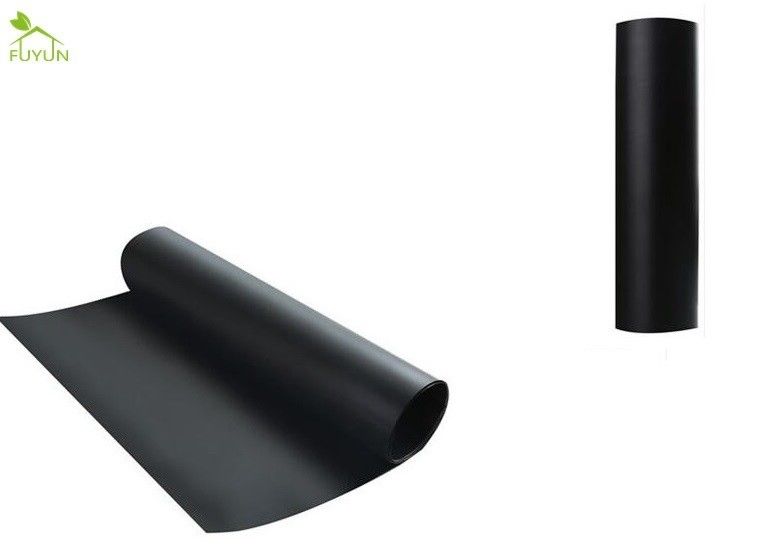

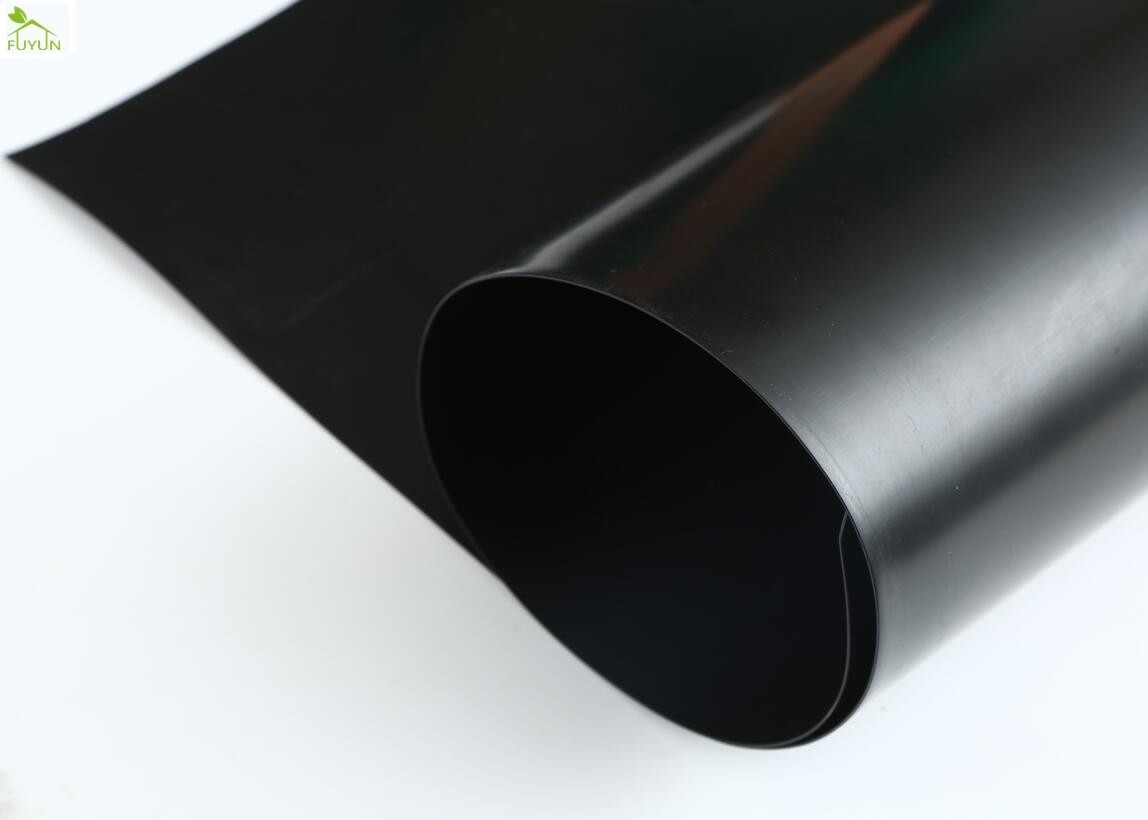

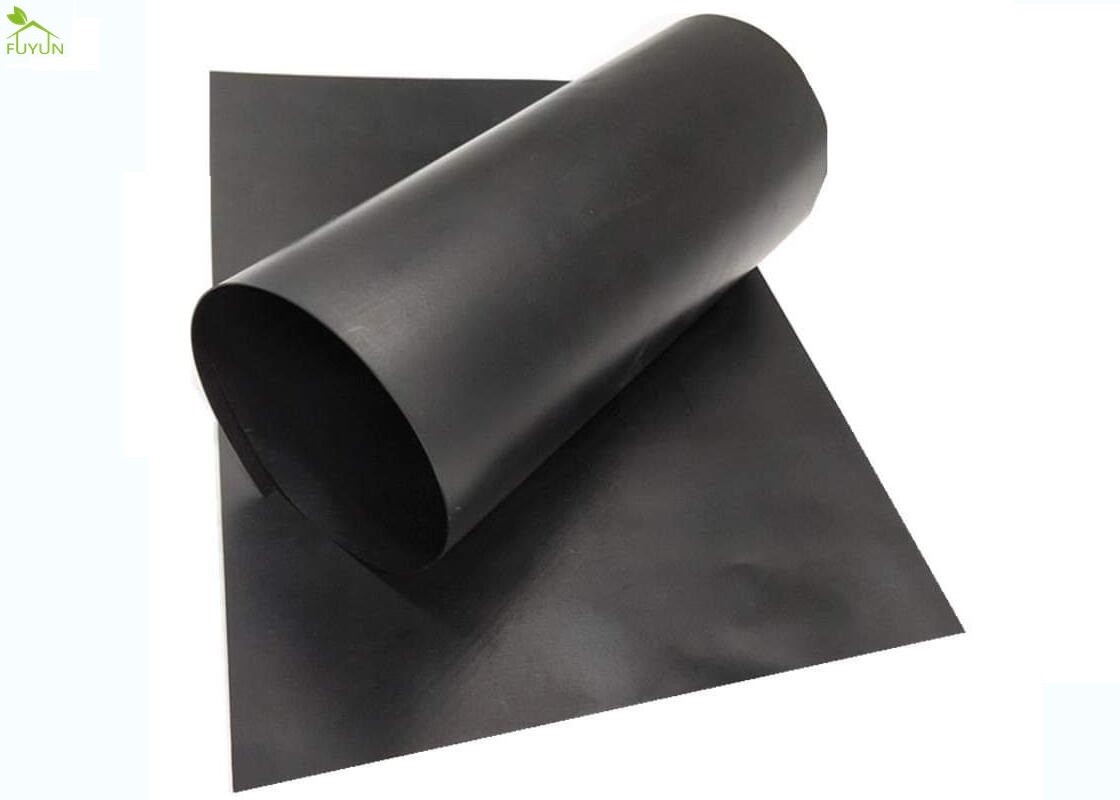

1.0mm Thickness HDPE Geomembrane Fabric Rain Water Storage Tank Pond Liner Anti Puncture
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
High temperature geomembrane are a specially engineered HDPE geomembranes that are able to retain their mechanical and physical properties when exposed to temperatures up to 212oF. This innovative formulation provides enhanced mechanical performance and improved chemical stability at elevated temperatures in addition to the traditional properties of polyethylene geomembranes.
1mm HDPE Geomembrane Circular Tanks are designed and made of high quality polyethylene resin with proportional carbon black antioxidant,anti-aging and UV-resistance materials which exhibit impermeable and ultraviolet resistance properties. Compared with traditional concrete and compacted clay, 1mm HDPE Geomembrane Circular Tanks have proven to be more cost effective, safe and fast deployment. They are widely used for rain water storage tank, fish tanks, fish ponds, solid waste landfills, reservoir, waste containment, aquaculture and water treatment system.
Table1(a) – High Density Polyethylene (HDPE) Geomembrane -Smooth
| Properties | Test | Test Value | Testing Frequency | ||||||||
| Method | 30 mils | 40 mils | 50 mils | 60 mils | 80 mils | 100 mils | 120 mils | (minimum) | |||
| Thickness (min. ave.) | D5199 | nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Nom. | Per roll | ||
| · lowest individual of 10 values | -10% | -10% | -10% | -10% | -10% | -10% | -10% | ||||
| Density mg/l (min.) | D 1505/D 792 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 200,000 lb | ||
| Tensile Properties (1) (min. ave.) | D 6693 | 20,000 lb | |||||||||
| · | yield strength | Type IV | 63 lb/in. | 84 lb/in. | 105 lb/in. | 126 lb/in. | 168 lb/in. | 210 lb/in. | 252 lb/in. | ||
| · | break strength | 114 lb/in. | 152 lb/in. | 190 lb/in. | 228 lb/in. | 304 lb/in. | 380 lb/in. | 456 lb/in. | |||
| · | yield elongation | 12% | 12% | 12% | 12% | 12% | 12% | 12% | |||
| · | break elongation | 700% | 700% | 700% | 700% | 700% | 700% | 700% | |||
| Tear Resistance (min. ave.) | D 1004 | 21 lb | 28 lb | 35 lb | 42 lb | 56 lb | 70 lb | 84 lb | 45,000 lb | ||
| Puncture Resistance (min. ave.) | D 4833 | 54 lb | 72 lb | 90 lb | 108 lb | 144 lb | 180 lb | 216 lb | 45,000 lb | ||
| Stress Crack Resistance (2) | D5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | per GRI-GM10 | ||
| (App.) | |||||||||||
| Carbon Black Content (range) | D 4218 (3) | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 20,000 lb | ||
| Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | 45,000 lb | ||
| Oxidative Induction Time (OIT) (min. ave.) (5) | 200,000 lb | ||||||||||
| (a) | Standard OIT | D 3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | ||
| — or — | |||||||||||
| (b) High Pressure OIT | D 5885 | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | |||
| Oven Aging at 85°C (5), (6) | D 5721 | ||||||||||
| (a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 | 55% | 55% | 55% | 55% | 55% | 55% | 55% | per each | ||
| — or — | formulation | ||||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 | 80% | 80% | 80% | 80% | 80% | 80% | 80% | |||
| UV Resistance (7) | D 7238 | ||||||||||
| (a) Standard OIT (min. ave.) | D 3895 | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | N.R. (8) | per each | ||
| — or — | formulation | ||||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) | D 5885 | 50% | 50% | 50% | 50% | 50% | 50% | 50% | |||
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
Advantage:
Package:
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
