| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, SASO, GB, SONCAP, BV |
| Model Number: | 2.0MM |
| Minimum Order Quantity: | 1300 square meters |
| Price: | USD 0.35-3.55 square meters |
| Packaging Details: | packed in roll with pipe core and woven bag |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Slope, River Dam, Flood Dyke, Reservoir | Material: | HDPE, PVC, LDPE, EVA, Polyethylene |
|---|---|---|---|
| Function: | Anti-seepage, Reinforce, Protect | Product Name: | Single Double Side Reservoir Covers Textured Geomembrane Rough Surface |
| Thickness: | 2.0mm | Length: | 6m, Customize |
| High Light: | Reservoir Cover Textured Geomembrane,Anti Seepage HDPE Geomembrana,Textured Geomembrane Rough Surface |
||

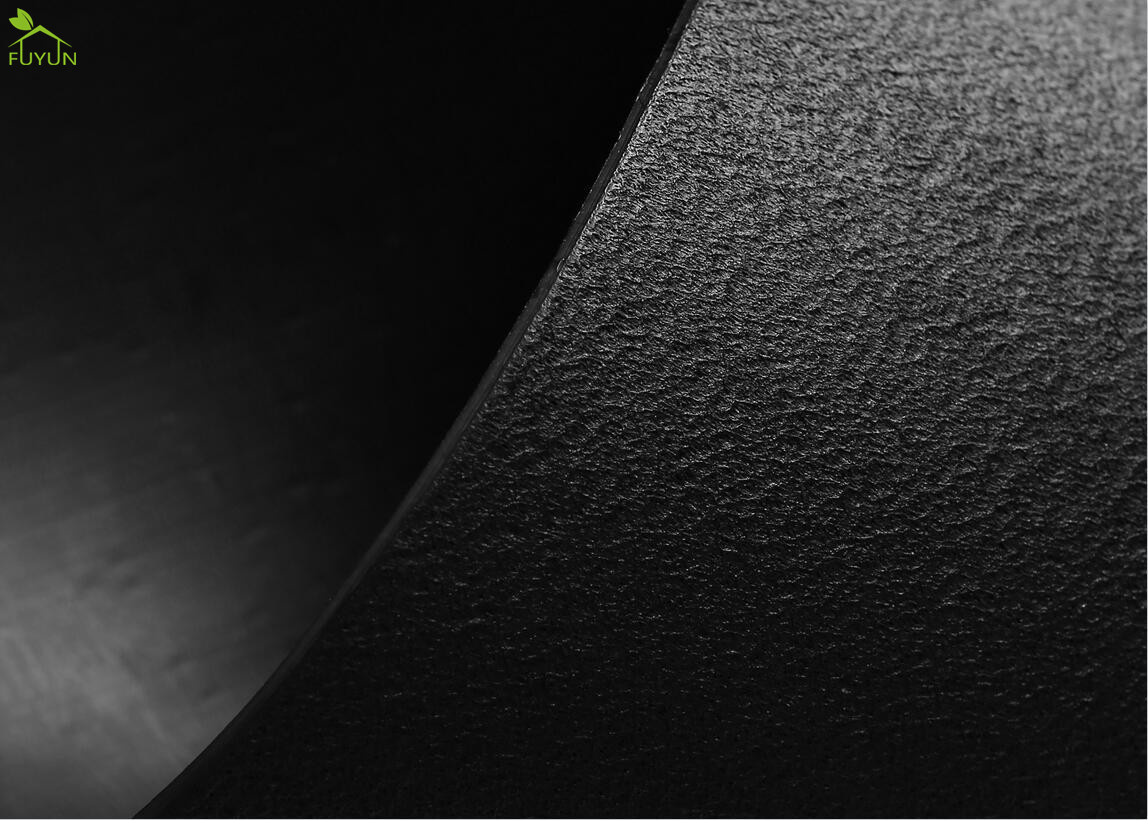

Single Double Side Reservoir Covers Textured Geomembrane Rough Surface
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
HDPE anti-seepage composite geomembrane with rough surface is a new type of anti-seepage material. Single rough surface and double rough surface increase friction coefficient and anti-skid function, which is more suitable for steep slope and vertical anti-seepage and provides engineering stability.
Pond liners provide a variety of benefits, but not all of them are created equal. Even the same-material liners can function differently. The Geosynthetic Institute is responsible for developing test techniques, standards of practice, and product specifications for geosynthetics such as HDPE liner production, design, and installation. Pond liners are robust and flexible, with excellent chemical and corrosion resistance. They are among the most long-lasting and robust polyethylene liners available. They can be fusion welded together in the field to make permanent sealing. To ensure a flawless installation, fusion welding requires an expert welder and accompanying equipment. Both fish and vegetation are safe in pond liners. Overall, liners are inexpensive and have one of the longest service lives of any polyethylene liners.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Application:
1. Seepage proof lining of subway, basement and tunnels.
2. Prevention of seepage by salting of roadbed and other foundations.
3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.
4. Seawater and freshwater aquaculture farms.
5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.
6. Seepage prevention of roof.
7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)
Advantage:
1. good flexibility and high impervious coefficient.
2. good heat and cold resistance and can be used in a wide temperature range.
3. good chemical properties and strong corrosion resistance.
4. strong weather resistance and excellent aging resistance.
5. thigh tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
