8mm Height Black Drainage Geocomposite For Building Underground Water System

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP, ASTM GM13
Model Number: 1600
Minimum Order Quantity: 2000 Square Meters
Price: USD 3.0-4.05 Square Meter
Packaging Details: packed in roll with woven bags
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 30000 Square Meters per Day
Detail Information
Material: HDPE, HIPS, Plastic, LDPE, LLDPE Application: Building, Underground Water System, Golf Course Greening, Football Field Greening, Terraces Greening, Garden Engineering, Roof Garden
Function: Drainage, Ventilation, Waterproof, Green, Protect Product Name: Building High Flow Capacity Water System Drainage Geocomposite Board Height 8mm
Dimple Height: 8mm Certificate: ASTM, EN, ISO,GB
Color: Black Original: Made In China
High Light:

Terrace Greening Drainage Geocomposite

,

8mm Height Drainage Geocomposite

,

black Drainage Geocomposite


Product Description

Building High Flow Capacity Water System Drainage Geocomposite Board Height 8mm



Material: HDPE, HIPS, plastic, ldpe

Dimple height: 8mm

Width: 5m

Length:15m

function: reinforce, drainage, waterproof, ventilation, protect

application: terrace greening, golf course greening, roof garden engineering, football field greening, underground water system





Product Description:



All buildings are susceptible to water damage. Drainage boards allow water that has reached the walls of a structure to flow harmlessly away. Without drainage boards, water can saturate a building’s walls or pool around its foundation. Fuyun Drainage board is designed to provide buildings with drainage protection at an economical price point. The board is formed from an impermeable polymeric sheet, which is heated to form a dimpled drainage core. The core is then bonded to a single layer of non-woven filter fabric.



Fuyun Drain Board products consist of multiple components designed to enhance the performance of Fuyun protected membrane roofing , waterproofing systems, and FuyunGreen Roof applications Fuyun DB consists of a polystyrene or PVC core combined with a polypropylene fabric available in various compressive strength and flow rate options, making it easy to select the right solution. Polymeric films attached to the Fuyun DB provide additional protection for softer waterproofing systems. Fuyun Drain Board products are designed to manage the flow of water, allowing for water to be directed away from the building structure.



Feature

  • Integral part of a high performance Henry protected membrane roofing or waterproofing system
  • Low installed cost compared to other drainage systems such as aggregates
  • Easy to handle and install
  • Strong and durable with very high compressive strength and tear resistance
  • Chemically resistant
  • High flow capacity





Technical Parameter:



No. Item Unit Standard Value
1200g 1400g 1600g 1800g 2000g
1 Mass per unit area of composite g/m2 ≥1200 ≥1400 ≥1600 ≥1800 ≥2000
2 Composite thickness mm ≥6.0 ≥7.0 ≥8.0 ≥9.0 ≥10.0
3 Longitudinal tensile kn/m ≥16 ≥16 ≥16 ≥16 ≥16
4 Composite ydraulic conductivity m2/s ≥1.2*10-4 ≥1.2*10-4 ≥1.2*10-4 ≥1.2*10-4 ≥1.2*10-4
5 Peel strength kn/m ≥0.3 ≥0.3 ≥0.3 ≥0.3 ≥0.3
6 Mesh core thickness mm ≥5.0 ≥5.0 ≥5.0 ≥5.0 ≥5.0
7 Tensile strength kn/m ≥13.0 ≥15.0 ≥15.0 ≥15.0 ≥15.0
8 Mass per unit area g/m2 ≥200 ≥200 ≥200 ≥200 ≥200
9 Dimple height mm 10 10 11 12 12





Application:



1. in roof garden

2. draining for roof and wall

3. paved areas and roadways

4. sport fields

5. retaning/basement walls

6. pond filtration

7. bridge abutments

8. tunnels and landfills

9. golf courses

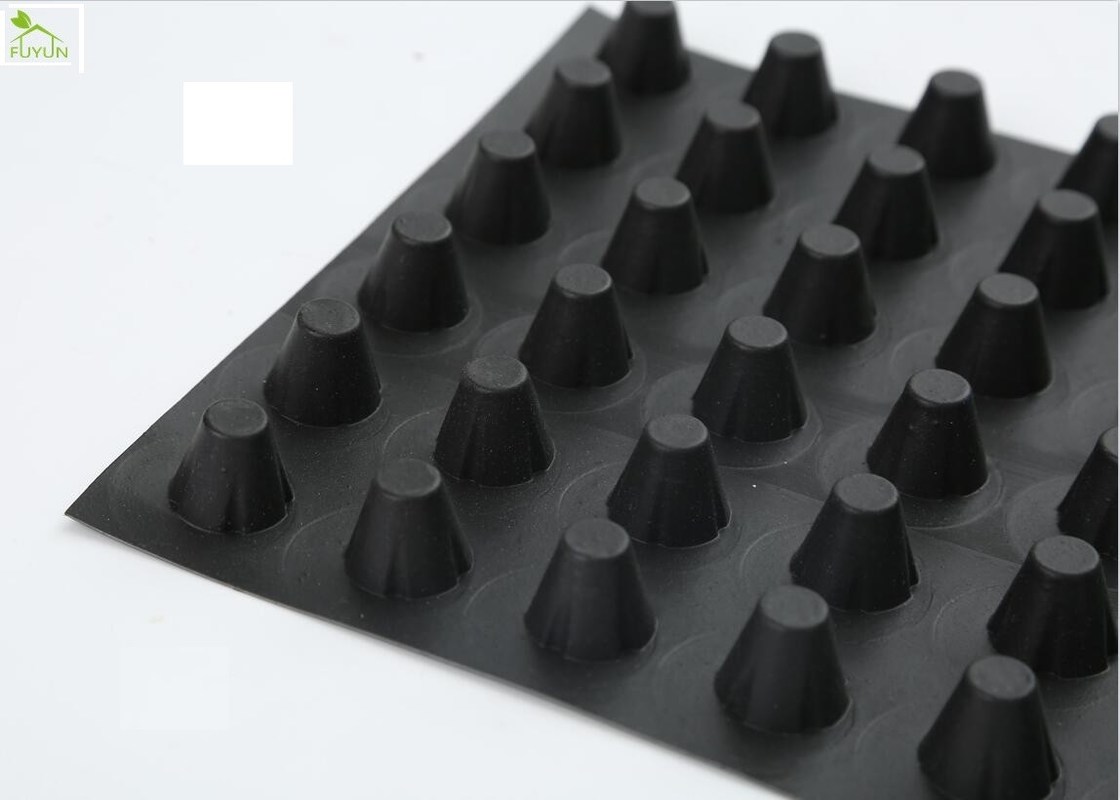

8mm Height Black Drainage Geocomposite For Building Underground Water System 0

8mm Height Black Drainage Geocomposite For Building Underground Water System 1

8mm Height Black Drainage Geocomposite For Building Underground Water System 2





Advantage:



1. Dimple drain sheet has the special structure,which can quickly and effectively derived rain.
2. Eliminate the waterproof layer of hydrostatic pressure,also can achieve active waterproof effect by this initiative .

3. The material of Luke dimple drain sheet is a kind of very good waterproof materials. By using reliable overlapped method to slope, it becomes a kind of very good auxiliary waterproof material.
4. Luke dimple drain sheet can effectively reduce the indoor noise.
5. Drainage shielding panels have very good ventilation moisture proof effect using on the pipeline.





Package:



producrs are packed in roll with woven bags and waterproof file, and we gurantee the product is good when customers receive it.



8mm Height Black Drainage Geocomposite For Building Underground Water System 3





Delivery:



all products will be delivered on time as customers requirement. generally it can be shiped in 7 days. 20GP, 40GP, 40HQ container is available.





Supply Ability:



25 tons per day.





Factory Show:



8mm Height Black Drainage Geocomposite For Building Underground Water System 4

8mm Height Black Drainage Geocomposite For Building Underground Water System 5





Why Choose US:

8mm Height Black Drainage Geocomposite For Building Underground Water System 6



FAQ:



8mm Height Black Drainage Geocomposite For Building Underground Water System 7
