| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | BV, CE, ISO, GB, EN, ASTM |
| Model Number: | EM5 |
| Minimum Order Quantity: | 1500 Square Meters |
| Price: | USD 0.75-1.63 Square Meter |
| Packaging Details: | packed in roll with woven bag, waterproof film |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50000 Square Meters per Day |
| Thickness: | 10mm | Weight: | 450g/sqm |
|---|---|---|---|
| Application: | Hillside Greening Project | Function: | Hillside Greening, Anti Erosion, Enhance Dam, Soil Consolidate, Drainage, Gravel Reinforcement |
| Material: | PET, HDPE, PP, Plastic, | Product Name: | Rock Hillside Greening 3 Layers PP PET High Quality Gravel Reinforce Soil Consolidate Anti-Erosion EM5 Green Geomat |
| High Light: | PET Geomat Erosion Control,Gravel Reinforce Erosion Control Geomat,Soil Consolidation Geomat Erosion Control |
||

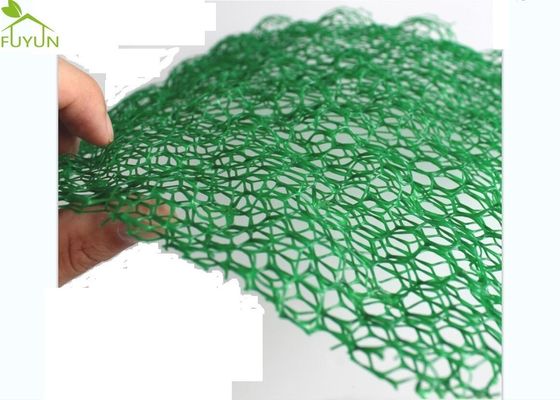

Rock Hillside Greening 3 Layers PP PET High Quality Gravel Reinforce Soil Consolidate Anti-Erosion EM5 Green Geomat
Quick Detail:
material: plastic, polyethylene, HDPE, PET, PP
function: gravel reinforce, soil consolidate, drainage, anti erosion
application: hillside greening projects, dam enhance
Product Description:
Three dimension vegetation net is a new-typed seed planting material with tridimensional structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc
Three dimension geomat characteristics:
(1)loose and fexible:Used for vegetation in his native of a 3 d structure of the towel gourd network kind of nets mat
(2)A layer of strong green composite protective cover:It left 90% of the space to fill soil, gravel, fine stone, and vegetation can pass through the root system, meanwhile, neatly balanced growth comfortably, after growing grass, the nets pad and soil surface firmly together, because the vegetation can be deeply root below the surface 30-40 cm, formed a layer of strong green composite protective cover.
Technical Parameter:
| No. | Item | Unit | Standard Value | |||
| EM2 | EM3 | EM4 | EM5 | |||
| 1 | Mass per unit area | g/m2 | ≥220 | ≥260 | ≥350 | ≥430 |
| 2 | Thickness | mm | ≥10 | ≥12 | ≥14 | ≥16 |
| 3 | Width deviation | m | +/-0.1 | |||
| 4 | Length deviation | m | +/-0.1 | |||
| 5 | Longitudinal tensile strength | kn/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
| 6 | Transverse tensile strength | kn/m | ≥0.8 | ≥1.4 | ≥2.0 | ≥3.2 |
Advantage:
1. High strength thermoplastic resin as raw material;
2. Special advanced composite process;
3. Suitable for slope protection of highway, railway, water conservancy, mine and municipal engineering to prevent soil erosion;
4. Preferred materials for landscaping and environmental protection;
5. Convenient construction.
Application:
1. The embankment can be protected from wind and rain before the turf grows.
2. It can keep the grass seeds evenly distributed on the slope and avoid wind and rain.
3. The mesh mat can absorb a lot of heat energy, increase the ground temperature, promote the germination of grass seeds, and extend the growth cycle of plants.
4. The composite protective layer formed by plant growth can withstand the erosion of high water level and high flow velocity.
5. It can replace concrete, asphalt, block stone and other slope materials, and is mainly used for slope protection such as highways, railways, rivers, and dams.
Package:
It's packed well with 2 layers woven bags and tight belts for convenient unloading and protecting product.
Delivery:
It's generally in 8 days. All loading procedures are professional for protectingproducts and for quick convenient unloading.
Supply Ability:
25.5 tons per 8 hrs
Factory Show:
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
