0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP
Model Number: 2.0MM
Minimum Order Quantity: 1000 square meters
Price: USD 0.45-0.6 square meters
Packaging Details: packed in roll with woven bags
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Tailing Pond Material: HDPE, PVC,polyethylene, LDPE, EVA
Function: Durable/chemical Resistance, Antiseepage, Waterproof, Impermeable, Puncture Resistance Density: 0.91~ 0.96 G/cm
Weight: 350gsm Product Name: Tailing Pond 350gsm Plastic Sheet, 0.96G/cm HDPE LDPE PVC Geomembrane Fabric
High Light:

Road Underlayment Polypropylene Geotextile Fabric

,

Polypropylene Geotextile Fabric Under Concrete Slab

,

0.96G/Cm geotextile road underlayment


Product Description

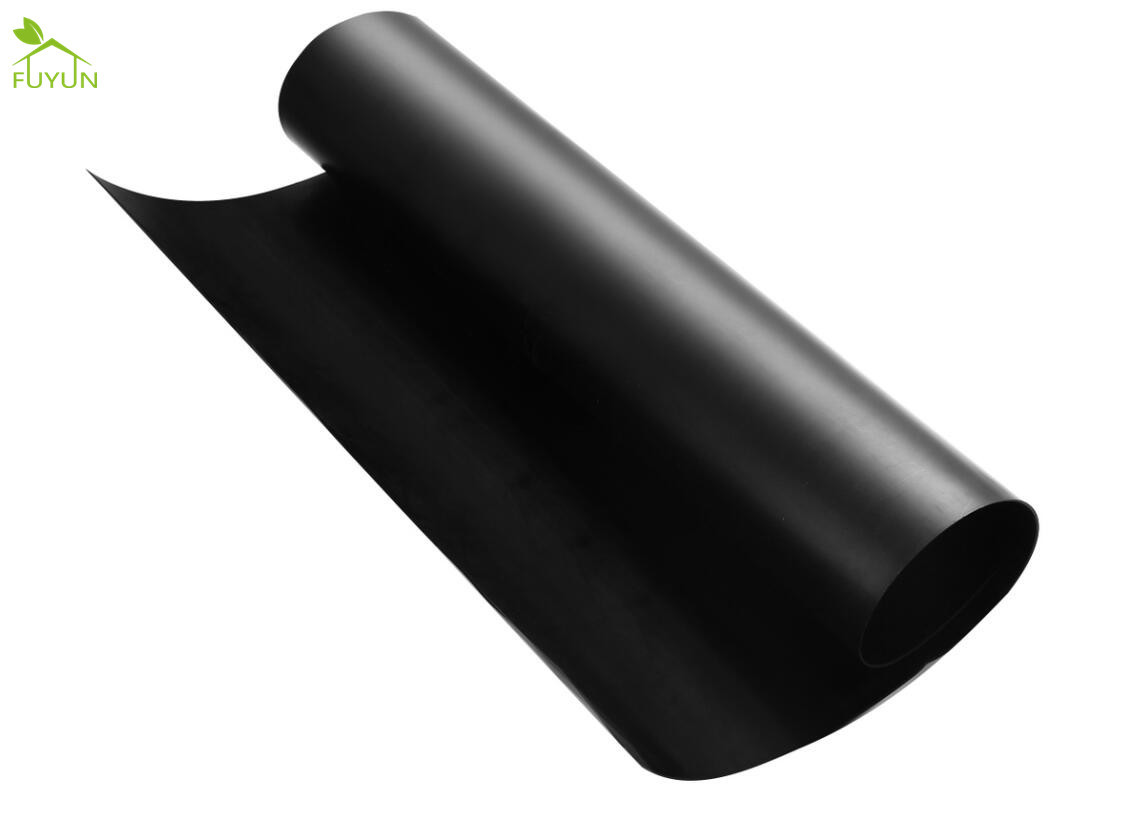

Tailing Pond 350gsm Plastic Sheet, 0.96G/cm HDPE LDPE PVC Geomembrane Fabric





Quick Detail:

  • material: HDPE, LDPE
  • length: 150m
  • width: 5m
  • function: seepage control, waterproof
  • thickness:  2.0mm
  • application: tailing pond, mining



Production Description:



Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.



Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -3 mm, width: 1-8 m, length:50-200 m. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.



0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment 0

Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:



Geomembrane is widely used for canal, aquaculture, irrigation ponds and remediation liners, other liner applications include landfills, waste water treatment lagoons, oil and gas exploration, power plants.


Aquaculture: Geomembrana Precio can be used as fish ponds, shrimp pond and other aquacultures.
Landfills: Bottom landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
Water Treatment System: Smooth Geomembrana Precio is applied to the adjustment of the power plant and sewage treatment pool or water treatment system.
Mining: Geomembrana Precio is applied for mining industry as washing pool, tailing pond, pool heap leaching, heap yard, dissolving tank, storage tank, the bottom of the tailing seepage control.
Other Applications: Environment protection and sanitation, water conservancy, municipal projects, landscaping, petrochemical industry, salt industry, agriculture.



0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment 1





Advantage:



1) Puncture, aging, ultra-violet radiation, oil and salt, and corrosion resistance
2) High tearing resistance, strong deformation adaptability
3) Good physical and mechanic performance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.





Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.



0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment 2





Factory Show:



0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment 3



Why Choose us?



0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment 4



FAQ:



0.96G/Cm Polypropylene Geotextile Fabric Under Concrete Slab Geotextile Road Underlayment 5
