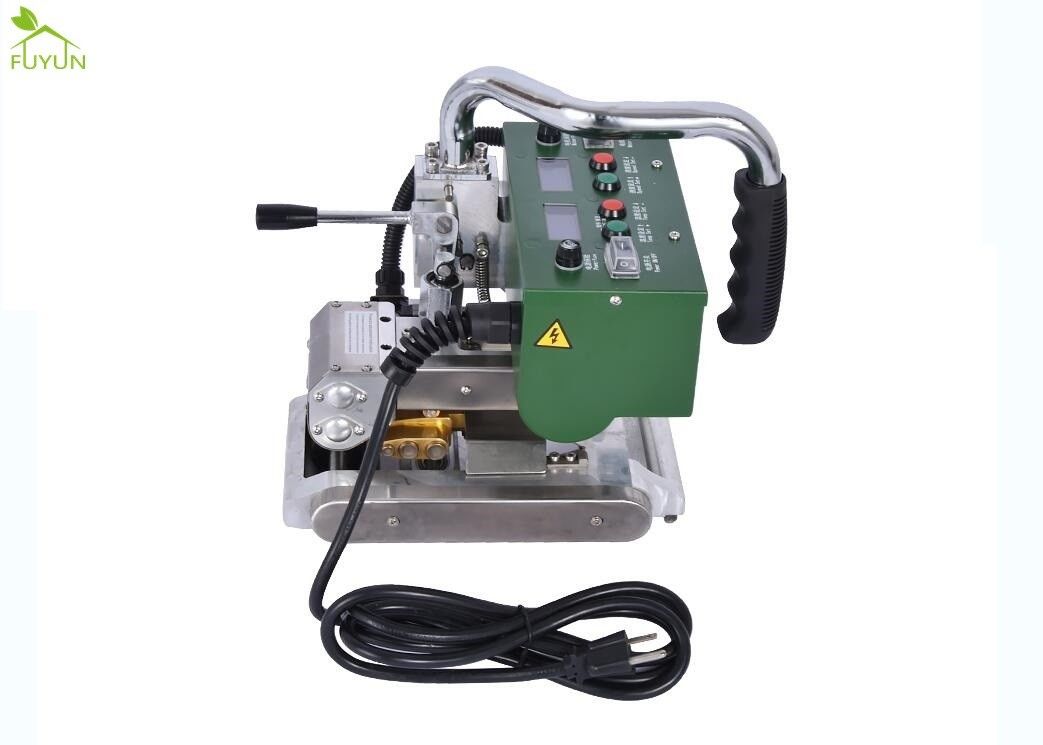

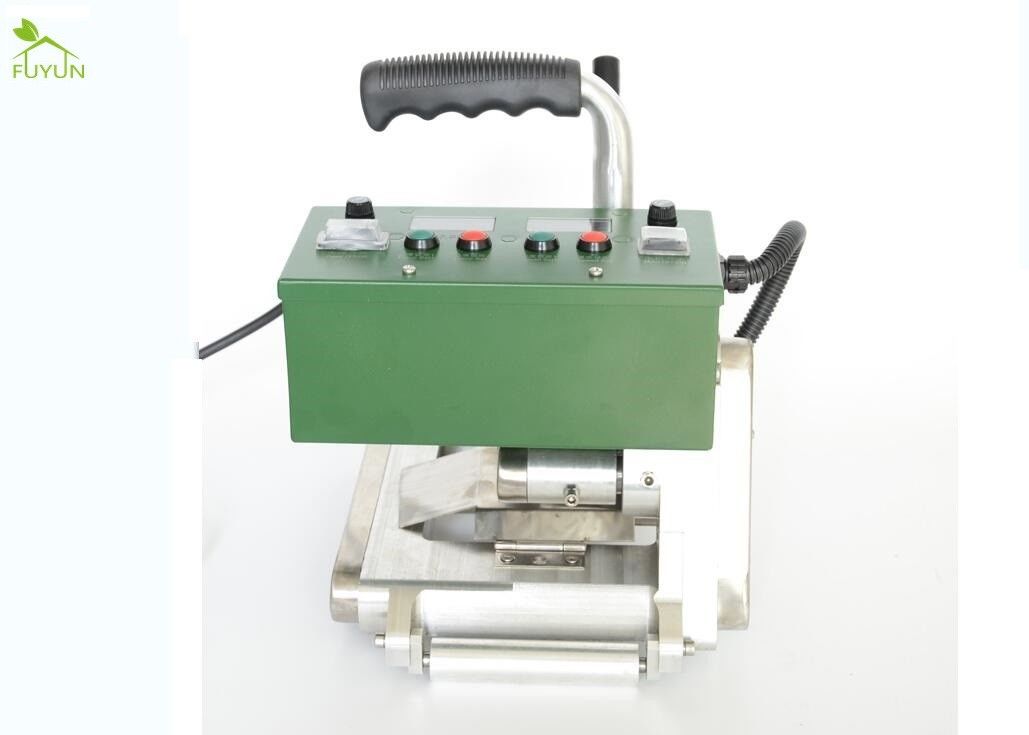

Hot Air HDPE Geomembrane Welding Machine 7.5kg For Reservoirs Projects

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB
Model Number: SWT-NSGM1
Minimum Order Quantity: 1 Set
Price: USD 1000-1850 set
Packaging Details: packed in waterproof box and standard carton
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Detail Information
Frequency: 50/60Hz Application: HDPE, LDPE ,EVA ,PVC, ECB, PP
Power: 1200w Product Name: 220V 1200W Geomembrane Plastic HDPE LDPE PVC Hot Air Welding Machine SWT-NSGM1 Made In China
Welding Temperature: 0-450°C Voltage: 220 V ± 5%
High Light:

7.5kg HDPE Geomembrane Welding Machine

,

HDPE Geomembrane Welding Machine Reservoirs projects

,

7.5kg Hot Air Welding Machine


Product Description

220V 1200W Geomembrane Plastic HDPE LDPE PVC Hot Air Welding Machine SWT-NSGM1 Made In China





Quick Detail:



machine size: 350*267*267mm

weight: 7.5kg

frequency: 50/60Hz

voltage: 220 V ± 5%

power: 1200w

welding speed: 0.5-8 m/min





Product Description:



Geomembrane Hot Wedge Welding Machines are also called Hot Air Welding, Hot wedge welders, Membrane Hot Wedge Welder. SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.



The welding machine has excellent performance, easy operation, fast welding speed and good welding quality. Widely used in highways, railways, tunnels, Bridges, reservoirs, buildings, artificial lakes, Bridges, swimming pools, aquaculture ponds, landfills and other waterproof engineering. The automatic welding machine is designed to weld film/membrane, including HDPE LDPE, PVC, EVA Geomembrane, Composite Geomembrane. Small light, easy to operate. it can be adjusted to accommodate the different thickness to make the welding stronger, avoid leakage. This machine is more suited to fast welding of large areas, such as landfill, pond liner, mining dam bottom liner welder.



The hot wedge welder controller adopts PID control, small temperature fluctuation, and automatic constant temperature control. The speed control uses a PWM automatic voltage regulation speed circuit. With DC servo motor drive, a large output torque and nailing performance when walking. In the case of vertical crawling and road loads, a constant speed can be maintained. Despite the changes in external temperature and voltage, the welder's performance is still stable.





Technical Parameters:



Item no.: SWT-NSGM1
Size 350*267*267mm
Weight 7.5KG
Voltage: 220V
Frequency: 50/60HZ
power 1200W
Welding Speed 0.5-8 m/min
Thickness of material 0.2-2.0 mm
Welding width 15 mm *2, interior cavity 20 mm
Overlap width 120 mm
Welding temperature
0-450°C

Seam Strength ≥85% base material ( tensile resistant in shear direction)





Application:



Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.

Hot Air HDPE Geomembrane Welding Machine 7.5kg For Reservoirs Projects 0



Advantage:

  • excellent performance
  • easy operation
  • good welding quality
  • available for welding different thickness



Package & Delivery:



The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.



Hot Air HDPE Geomembrane Welding Machine 7.5kg For Reservoirs Projects 1





Why choose us?



Hot Air HDPE Geomembrane Welding Machine 7.5kg For Reservoirs Projects 2



FAQ:



Hot Air HDPE Geomembrane Welding Machine 7.5kg For Reservoirs Projects 3

0-450°C
