| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, CE, GB |
| Model Number: | GS-75-400 |
| Minimum Order Quantity: | 1350 Square Meters |
| Price: | USD 1.0-2.35 Square Meter |
| Packaging Details: | packed in belts, wood pallet |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20000 Square Meters per Day |
| Material: | High-density Polyethylene (HDPE), PET, PP | Product Name: | Cellular Confinement Systems Reinforcing Erosion Control Gravel StabIlizer Black HDPE Geocell |
|---|---|---|---|
| Application: | Cellular Confinement Systems | Function: | Reinforce, Gravel StabIlizer, Erosion Control, |
| Height: | 75mm | Package: | Packed In Belts, Wood Pallet |
| High Light: | Alkali Resistance HDPE Geocell,HDPE Geocell Cellular Confinement Systems,Alkali Resistance Geocell Mat |
||
Cellular Confinement Systems Reinforcing Erosion Control Gravel StabIlizer Black HDPE Geocell
Quick Detail:
material: High-density polyethylene (HDPE), PET, PP
height: 75mm
function: reinforce, erosion control, gravel stabIlizer
application: cellular confinement systems
Product Description:

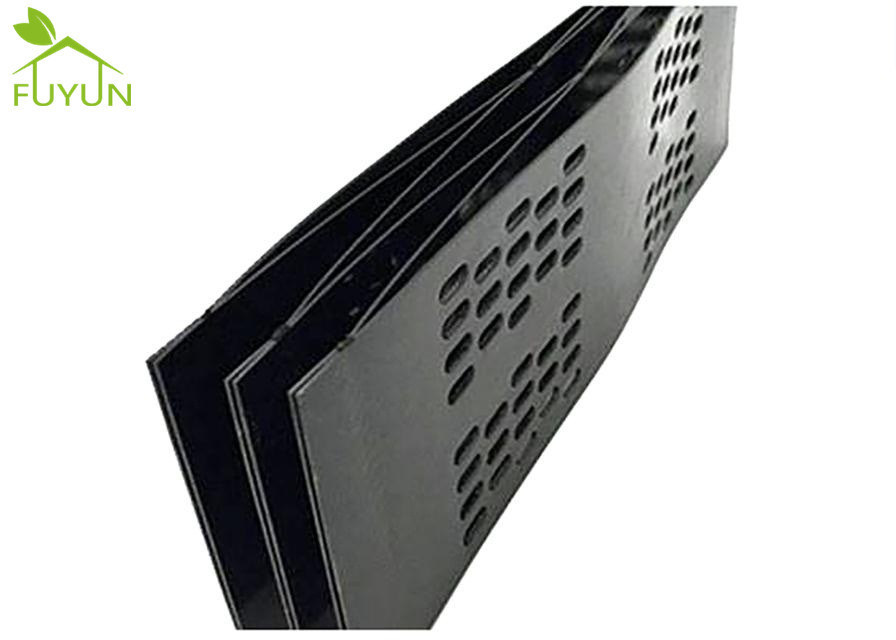

FUYUN geocell is a three-dimensional mesh cell structure formed by reinforced HDPE sheet material and welded by high strength. Generally made by ultrasonic needle welding. Due to engineering needs, some punch holes in the diaphragm. The HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. The geocell is a mesh cell structure formed by high strength HDPE or PP copolymer broadband, after strong welding or riveting. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
It is retractable, and can be folded up in transportation, when the use of the expansion and filling of soil, stone and concrete, with a strong lateral constraints and stiffness of the structure. It can be used as a cushion to increase the bearing capacity of soft foundation, and laid on the slope to form a slope protection structure, and also can be used to build retaining structure.
Technical Parameters:
| item | GS-50-400 | GS-75-400 | GS-100-400 | GS-150-400 | GS-200-400 |
| height(mm) | 50 | 75 | 100 | 150 | 200 |
| thickness of the sheet (mm) | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 |
| weld distance (mm) | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 |
| tensile strength of weld points (N/cm) | ≧100 | ≧100 | ≧100 | ≧100 | ≧100 |
| tensile strength of connection of cells (N/cm) | ≧120 | ≧120 | ≧120 | ≧120 | ≧120 |
| tensile strength at yield of each sheet(N/cm) | ≧20 | ≧20 | ≧20 | ≧20 | ≧20 |
Application:
1. stable the bed of railway and road
2. bear the bed of road
3. bear the loading dykes and walls
4. administer shallow water and river
5. support pipeline and sewer
6. prevent landslide and to be used as compound walls to support loading
7. be used in dependent walls,wharfs and bank and so on
8. govern sand,beach,river bank and riverbed
Advantage:
Package:
all products are packed by belts on the wood pallet. we make sure that customers receive the products well. we also support customer's special package requirement.
Delivery:
all products will be delivered immidiately when finished. we choose international famous logistic company and shipping company to gurantee the safety of product and fast delivery.
