Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: EN, CE, GB, ISO, BV
Model Number: 50×5
Minimum Order Quantity: 1450 Square Meters
Price: USD 1.6-4.2 Square Meter
Packaging Details: packed in roll in woven bags with pipe core, pack size width 1-5m, length 20-50m
Delivery Time: 7 Days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
Supply Ability: 34000 Square Meters per Day
Detail Information
Application: Artificial Lake, Swimming Pool Material: Bentonite, HDPE Geotextile,
Function: Anti-seepage, Reinforce GCL (g/㎡): 5000
Product Name: Artificial Lake Anti Seepage Reinforce Bentonite Geosynthetic Clay Liner Blanket GCL 50×5 Layer Package: Packed In Roll In Woven Bags With Pipe Core, Pack Size Width 1-5m, Length 20-50m
High Light:

Artificial Lake Geocomposite Clay Liner

,

5m Small Pond Liner

,

5m Geocomposite Clay Liner


Product Description



Artificial Lake Anti Seepage Reinforce Bentonite Geosynthetic Clay Liner Blanket GCL 50×5 Layer





Quick Detail:



component: bentonite, HDPE geomembrane, geotextile

size: 50*5m

function: antiseepage, reinforce

application: artificial lake, swimming pool





Product Description:



GCL (bentonite waterproof geosynthetic clay liners) produced that FUYUN produced is named bentonite composite waterproof pad or blanket. The bentonite waterproof blanket has four layers. The upper and lower layers are geotextiles, which has the function of protection and reinforcement, so that it has a certain overall puncture strength and tensile strength; The middle layer is sodium bentonite being made from natural clay mineral inorganic materials. It has high water absorption capacity and high expansibility, and low water permeability when wet; The bottom layer is a thin HDPE geomembrane being used for anti-seepage.



Our bentonite waterproof blanket can be constructed under extreme low temperature (-20℃) where the traditional waterproof material cannot be constructed, Because bentonite is inorganic material, its durability is better than that of organic waterproof material.



The bentonite waterproof blanket processed by advanced needling steps. This step can make the coarse fiber pass through the bentonite from the upper geotextile and fix it on the lower geotextile. By combining the four parts, the integrity of the bentonite waterproof blanket is greatly improved, and the shear strength and tensile strength of the bentonite waterproof blanket are guranteed, which makes the bentonite waterproof blanket be applied alone, It can also be combined with compacted clay impervious core or geomembrane.



Installing notes:



1, bentonite waterproof geosynthetic clay liners construction, foundation should be checked and inspected, the foundation should be rammed flat, no potholes and water, no gravels, no roots and other sharp objects.

2, bentonite waterproof geosynthetic clay liners in the process of handling and construction should be to avoid vibration and impact, to avoid the blanket body having a large degree of bending.

3. After the installing and acceptance of GCL, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomembrane, which shall be installed and welded in time to prevent it from being wet or broken by rain.





Technical Parameter:



No. Item Technical Index
GCL-NP GCL-OF GCL-AH
1 GCL (g/㎡) 4000 and not less than the specified value 4000 and not less than the specified value 4000 and not less than the specified value
2 Swelling Index of Bentonite (ml/2g) 24 24 24
3 Absorption of Blue ( g/100g) 30 30 30
4 Tensile Strength (N/100mm) 600 700 600
5 Elongation at Maximum Load % 10 10 8
6 Peel Strength(N/100mm) Non Woven and Woven Fabrics 40 40 /
PE Film and Non Woven Fabrics / 30 /
7 Permeability Coefficient (m/s) 5.0x10^-11 5.0x10^-12 1.0x10^-12
8 Hydrostatic Pressure Resistance 0.4MPa, 1h, no seepage 0.6MPa, 1h, no seepage 0.6MPa, 1h, no seepage
9 Filtration Loss (ml) 18 18 18
10 Durability of Bentonite 20 20 20






Application:

  • Waterproofing Works In Petroleum And Metallurgy Industries, Municipal Engineering, Subway, Railway, Light Industry, Petroleum And Metallurgy Industries
  • Artificial Lake, Landscape Lake, Waterscape Seepage Control Project, Landscape River, Villa Landscape Lake
  • Underground Oil Storage Tank Seepage Control Project, Water Storage Structure, Irrigation Channel, Small Reservoir Area, Reservoir Dam
  • Basement, Underground Garage, Workshop, Underground Foundation Seepage Control Engineering

  • Desert Control, Environmental Improvement, Landfill And Other Large Areas Of Soil Waterproof Blanke

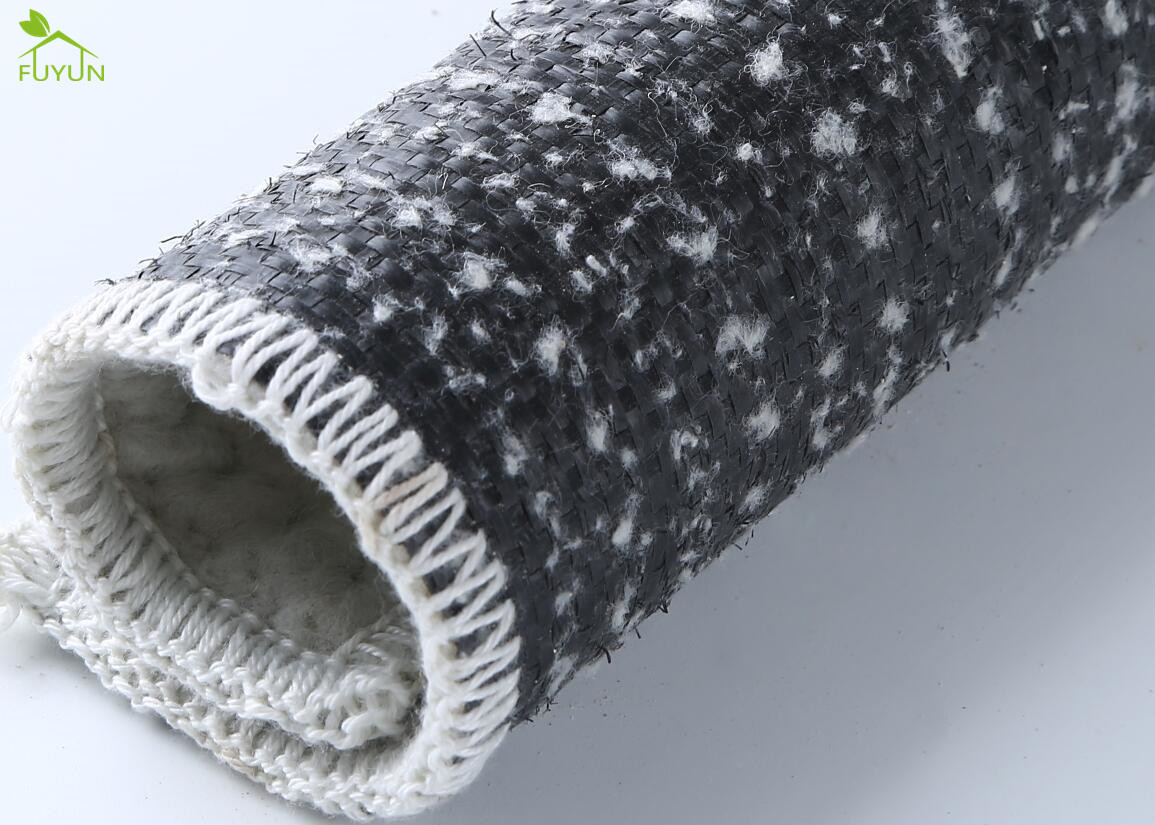

Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 0





Advantage:



  • It has the advantages of simple construction, low requirement for base course, natural overlapping and construction under sub zero temperature.
  • The seepage resistance is better than bentonite, and can stop water with water, and has high hydrostatic pressure resistance.
  • Bentonite is a kind of natural inorganic material, which has no aging reaction and good durability.

  • It is easy to repair. Even after the completion of waterproof Engineering (anti-seepage engineering), if the waterproof layer is accidentally damaged, as long as the damaged parts are simply repaired, the perfect waterproof performance can be obtained.

  • It belongs to environmental protection material and will not cause any adverse impact on the environment,It is buried underground, and has no pollution to water quality and soil.

  • In the construction of elevation or inclined plane, fix it with nails and washers, and lap it as required.

  • The unique self-healing property makes use of the swelling property of bentonite when it meets with water, which can self heal and repair the defect or damage of impervious layer.

  • The unique air permeability is conducive to the exchange of water and air, and makes the plants around the water grow healthily.



​​Package:



products are well be packed as customers' requirement, packed in roller with woven bags and good belt, and we gurantee product be good when customer receive.

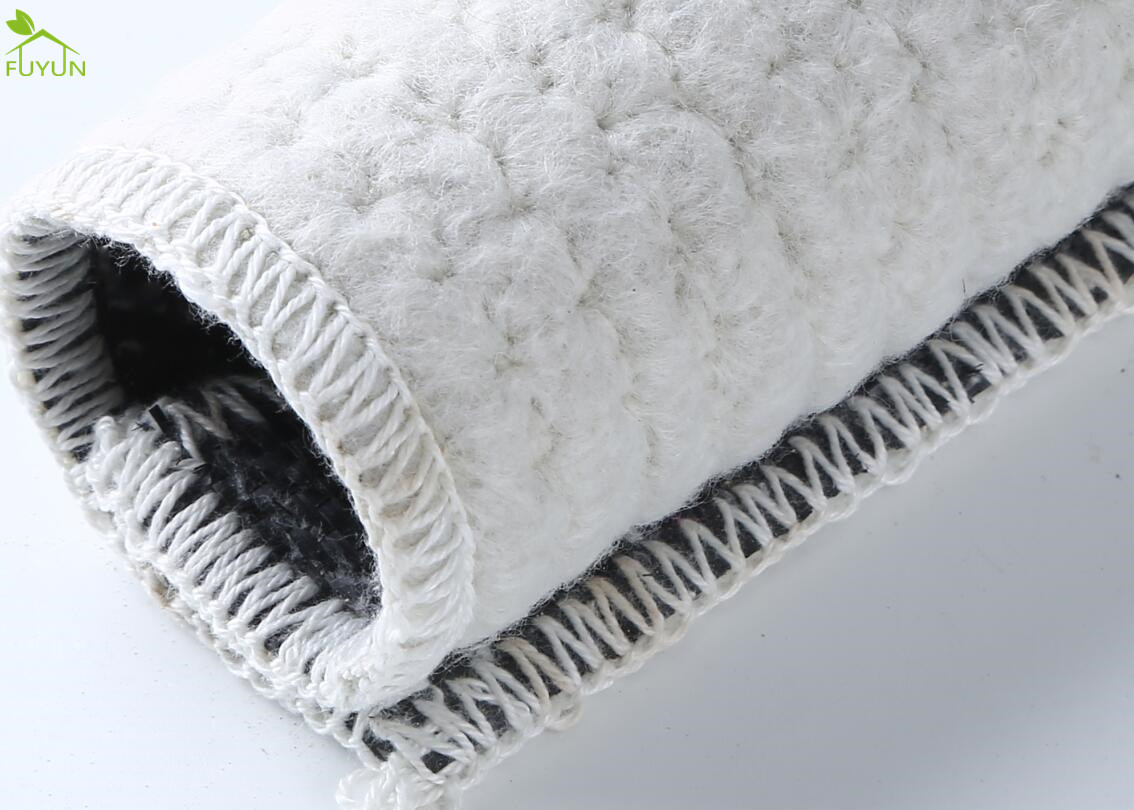

Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 1





Delivery:



all products will be delivered in time according to customer's requirement. 20GP Container can load around 17.5 tons, 40HQ 24.5 tons. It can be shipped in 7 days.



Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 2





Supply Ability:



25.5 tons per day.





Factory Show:



Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 3

Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 4





FAQ:



Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 5



Why Choose US:



Artificial Lake Geocomposite Clay Liner , 5m Width Small Pond Liner 6
