PET Geoweb Cellular Confinement System

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, CE, GB
Model Number: GS-100-400
Minimum Order Quantity: 1260 Square Meters
Price: USD 1.5-3.05 Square Meter
Packaging Details: packed in belts, wood pallet, waterproof film
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 20000 Square Meters per Day
Detail Information
Material: PET, Plastic, PP, High-density Polyethylene (HDPE) Product Name: Slope Shoreline ASTM Black Reusable High Tensile Strength HDPE Soil Reinforcement Protect Landslide Geocell
Application: Slope, Shoreline Function: Protect, Reinforce
Height: 100mm Certificate: ASTM, ISO, EN
High Light:

High Tensile Strength Geoweb Cellular Confinement System

,

PET Geoweb Cellular Confinement System

,

PET geoweb geocell


Product Description

Slope Shoreline ASTM Black Reusable High Tensile Strength HDPE Soil Reinforcement Protect Landslide Geocell







Quick Detail:



material: PET, Plastic, PP, High-density polyethylene (HDPE)

height: 100mm

function: protect, reinforce

application: slope, shoreline





Product Description:

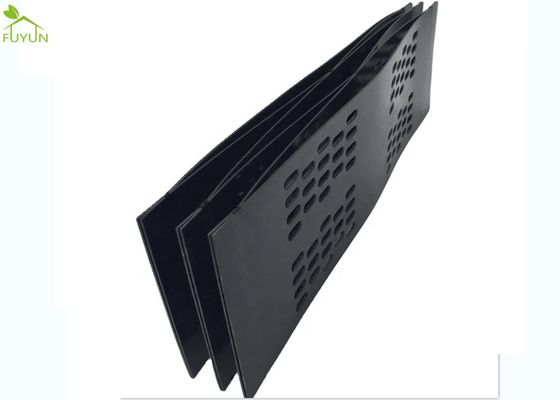

FUYUN geocell is is a three-dimensional grid cell structure formed by reinforced HDPE material with ultrasonic welding. And it is a three-dimensional network after being expanded. Due to engineering needs, some holes are punched in the diaphragm.


It is mainly divided into geocell, high-strength geocell, and honeycomb restraint system(Honeycomb restraint system: it is a three-dimensional network made of polymer broadband with ultrasonic welding, and the cells constitute a strong lateral restraints and stiffness structure by filling with materials such as sand, stone or concrete).


flexible and high strength three-dimensional materials in the form of polymer plastic sheets firmly bonded together (ultrasonic welding). These sheets form cells of equal size arranged in a special order. When folded, the material has the form of compact module, easy to store and transport. When extended, the material transforms into correctly sized three dimensional cellular structure.





Technical Parameters:



item GS-50-400 GS-75-400 GS-100-400 GS-150-400 GS-200-400
height(mm) 50 75 100 150 200
thickness of the sheet (mm) ≧1.1 ≧1.1 ≧1.1 ≧1.1 ≧1.1
weld distance (mm) 330≦A<1000 330≦A<1000 330≦A<1000 330≦A<1000 330≦A<1000
tensile strength of weld points (N/cm) ≧100 ≧100 ≧100 ≧100 ≧100
tensile strength of connection of cells (N/cm) ≧120 ≧120 ≧120 ≧120 ≧120
tensile strength at yield of each sheet(N/cm) ≧20 ≧20 ≧20 ≧20 ≧20





Application:



1.foundation reinforcement(ground stabilization:)
2.soft foundation treatment,
3.steep slope protection,
4.landslide prevention,
5.load-bearing mixed retaining wall.
6.It is especially suitable for weathering forests, sand streams and marshes.

PET Geoweb Cellular Confinement System 0PET Geoweb Cellular Confinement System 1

Advantage:

  • It is capable of expansion and contraction, and it can be folded during transportation and stretched during construction. It constitutes a strong lateral restraint and stiffness structure by filling with materials such as sandstone or concrete.
  • It is formed by light material with stable chemical properties which is resistant to abrasion, photooxidation, acid, and alkali, It is suitable for different soil and desert conditions.
  • It has a higher lateral limit, anti-skid, and anti-deformation, and can effectively enhance the bearing capacity of the roadbed and load distribution.
  • It can meet different engineering needs by changing height, welding distance, and other geometric dimensiones.
  • It is convenient to connect and can improve construction speed.


Package:



all products are packed by belts on the wood pallet. we make sure that customers receive the products well. we also support customer's special package requirement.

PET Geoweb Cellular Confinement System 2

Delivery:



all products will be delivered immidiately when finished. we choose international famous logistic company and shipping company to gurantee the safety of product and fast delivery.



PET Geoweb Cellular Confinement System 3





Factory Show:



PET Geoweb Cellular Confinement System 4

PET Geoweb Cellular Confinement System 5





Why Choose US?



PET Geoweb Cellular Confinement System 6



FAQ:



PET Geoweb Cellular Confinement System 7
